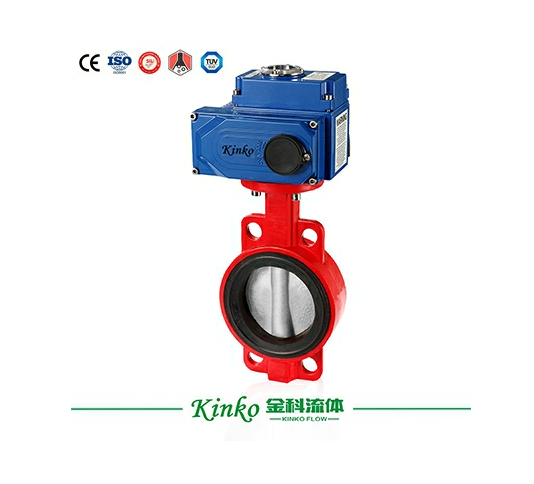

1. Introduction
As pipeline diameter increases, valve selection becomes critical for both capital expenditure (CAPEX) and long-term operational cost. For diameters 6 inches (DN150) and above, butterfly valves offer significant advantages over gate valves, ball valves, and globe valves.
Understanding these benefits helps procurement professionals justify butterfly valve selection for water, wastewater, HVAC, power, and industrial cooling systems.
This guide quantifies the key benefits of butterfly valves in large-diameter pipelines.
2. Quick Summary – Why Butterfly Valves Excel at Large Diameters
| Benefit | Impact vs Alternatives |
|---|---|
| Lower cost | 40–60% less than gate or ball valves |
| Lighter weight | 70–80% lighter than gate valves |
| Shorter length | 80–90% shorter face-to-face dimension |
| Faster operation | 90° rotation vs multi-turn (gate) |
| Lower installation cost | Fewer supports, easier handling |
| Good throttling | Gate and ball valves are poor throttling devices |
3. Benefit #1: Cost Savings (CAPEX)
12" Butterfly vs Gate vs Ball Valve – Cost Comparison
| Valve Type | 12" Valve | 24" Valve | 48" Valve |
|---|---|---|---|
| Butterfly (concentric) | $400–600 | $1,200–1,800 | $4,000–6,000 |
| Gate valve | $1,200–1,800 | $4,000–6,000 | $15,000–25,000 |
| Ball valve (flanged) | $2,500–4,000 | $8,000–12,000 | $40,000–60,000+ |
Savings: Butterfly valves cost 40–60% less than gate valves and 70–80% less than ball valves at large diameters.
Why?
Simpler casting/machining
No heavy bonnet or rising stem
Minimal material usage
4. Benefit #2: Weight Reduction – Structural Savings
Weight Comparison (12" Valve, Ductile Iron)
| Valve Type | Approximate Weight | Crane / Support Requirement |
|---|---|---|
| Butterfly (wafer) | 45 lbs (20 kg) | Light – one person can lift |
| Butterfly (lug) | 65 lbs (29 kg) | Light |
| Gate valve | 220 lbs (100 kg) | Heavy – mechanical lift required |
| Ball valve | 350 lbs (159 kg) | Very heavy – crane required |
Impact on System Cost
Lighter pipe supports – smaller, cheaper structures
Lower shipping cost – more valves per pallet/container
Safer installation – less risk of injury
No heavy lifting equipment for most sizes up to 24"
KINKO note: A 24" wafer butterfly valve weighs ~150 lbs. A 24" gate valve weighs ~800 lbs. The butterfly requires no crane.
5. Benefit #3: Space Savings – Short Face-to-Face Length
Face-to-Face Length Comparison (12" Valve)
| Valve Type | Length (inches) | Space Savings vs Butterfly |
|---|---|---|
| Butterfly (wafer) | 3.5" (ISO 5752 Series 20) | Reference |
| Butterfly (lug) | 3.5" (same) | Reference |
| Gate valve | 18"–24" | 5–7x longer |
| Ball valve | 20"–28" | 6–8x longer |
Impact on Piping Layout
Shorter pipe racks – less structural steel
Tighter installations – valves fit in confined spaces
Lower material cost – shorter pipe runs between flanges
Easier insulation – smaller surface area
6. Benefit #4: Fast Operation – 90° Quarter-Turn
| Valve Type | Operation Type | Time to Open (12" valve) |
|---|---|---|
| Butterfly | Quarter-turn (90°) | 2–5 seconds (manual) / 1–2 sec (actuated) |
| Gate | Multi-turn (20–40 turns) | 30–60 seconds |
| Ball | Quarter-turn (90°) | 2–5 seconds |
Butterfly and ball valves are equally fast. Gate valves are slow – disadvantage for emergency operations.
Application Impact
Emergency shut-down (ESD) – butterfly valves respond quickly
Frequent cycling – reduces operator fatigue
Automated systems – lower cycle time improves process efficiency
7. Benefit #5: Excellent Throttling Capability
| Valve Type | Throttling Ability | Typical Range |
|---|---|---|
| Butterfly valve | Excellent (especially double offset) | 30°–70° disc position |
| Ball valve | Fair (seat damage risk at partial open) | Not recommended |
| Gate valve | Poor (seat erosion, vibration) | Not recommended |
| Globe valve | Excellent | Any position |
Unique advantage: Butterfly valves are one of the few large-diameter valves that can effectively throttle flow.
Applications Benefiting from Throttling
Flow balancing in water distribution
Pressure regulation in pumping stations
Cooling water control in power plants
Process flow adjustment in chemical plants
8. Benefit #6: Lower Pressure Drop (vs Gate Valve – Misconception Clarified)
| Valve Type | Pressure Drop at Full Open (12") | Relative |
|---|---|---|
| Gate valve | Very low (almost zero) | Best |
| Butterfly valve (concentric) | Low (disc remains in flow) | Good |
| Ball valve (full port) | Very low | Best |
| Butterfly valve (double offset) | Very low (streamlined disc) | Excellent |
Reality check: While gate valves have lower pressure drop, butterfly valves are acceptable for 95% of large-diameter applications. For pigged lines or ultra-low pressure drop requirements, use gate or full-port ball valves.
Typical pressure drop (6" butterfly, water, full open): ~1–2 PSI – negligible for most systems.
9. Benefit #7: Lower Maintenance & Longer Service Life
| Component | Butterfly Valve | Gate Valve |
|---|---|---|
| Wear parts | Seat (1 piece) | Gate, seats, stem packing |
| Seat replacement | In-line (no valve removal for wafer/lug) | Requires valve removal from line |
| Stem seals | Simple O-ring or PTFE | Complex packing gland |
| Corrosion vulnerability | Disc and stem only | Internal gate and seats |
Butterfly valves are easier and cheaper to maintain – especially in large diameters where valve removal is expensive.
10. Benefit #8: Actuation Cost Savings
| Valve Type (12") | Actuator Torque Requirement | Actuator Cost |
|---|---|---|
| Butterfly (concentric) | Low (400–600 Nm) | $500–800 |
| Butterfly (double offset) | Medium (800–1200 Nm) | $800–1,200 |
| Ball valve (full port) | High (2500–3500 Nm) | $2,000–3,000 |
| Gate valve (rising stem) | Very high (thrust + torque) | $3,000–5,000+ |
Smaller actuators = lower cost, smaller control panels, less power consumption.
11. Summary Table – Butterfly Valve Benefits by Diameter
| Diameter | Cost Savings vs Gate | Weight Savings vs Gate | Best Application |
|---|---|---|---|
| 6" – 12" | 40–50% | 60–70% | Industrial water, HVAC |
| 12" – 24" | 50–60% | 70–80% | Cooling water, wastewater |
| 24" – 48" | 60–70% | 80–85% | Raw water, irrigation |
| 48" – 80" | 70–80% | 85–90% | Dam outlets, flood control |
Savings increase with diameter – butterfly valves become increasingly economical at larger sizes.
12. Limitations – When NOT to Use Butterfly Valves
| Limitation | Better Alternative |
|---|---|
| Pigged pipelines (internal cleaning pigs) | Full-port ball valve or gate valve |
| Ultra-high pressure (>1500 PSI) | Gate or ball valve (Class 900+) |
| Ultra-low pressure drop required | Gate valve |
| High-temperature >800°C | Metal-seated gate valve |
| Vacuum service below 1 torr | Gate or bellows-sealed valve |
| Slurry with large solids | Knife gate valve |
13. Real-World Application Examples
| Application | Diameter | Why Butterfly Was Chosen |
|---|---|---|
| Municipal water distribution | 24"–48" | Lowest cost, light weight, easy automation |
| Power plant cooling water | 36"–72" | Large diameter only butterfly can handle |
| HVAC chilled water loop | 12"–30" | Short length fits in mechanical rooms |
| Wastewater treatment aeration | 8"–20" | Good throttling for air flow control |
| Irrigation canal gate | 60"–80" | Only practical valve type at this scale |
| Firewater storage tank outlet | 10"–16" | Fast opening, lug type for dead-end service |

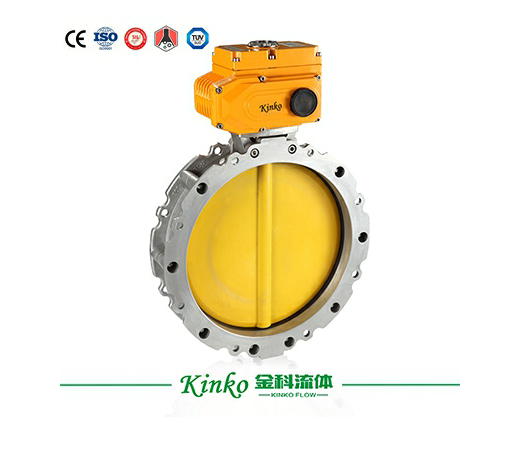

14. KINKO Large-Diameter Butterfly Valve Offerings
| Series | Max Diameter | Max Pressure | End Connection | Key Feature |
|---|---|---|---|---|
| KBF-LT (Concentric) | 80" (DN2000) | 250 PSI (PN16) | Wafer or Lug | Lowest cost, rubber-lined |
| KBF-HP (Double Offset) | 36" (DN900) | 740 PSI (Class 300) | Wafer, Lug, Flanged | High performance, PTFE seat |
| KBF-TO (Triple Offset) | 48" (DN1200) | 1500 PSI (Class 600) | Flanged or Lug | Metal seat, fire-safe, high temp |
All KINKO large-diameter valves include:
ISO 5211 mounting pad for actuators
Heavy-duty disc (cast or fabricated)
Full test documentation (hydrostatic + seat test)
Custom coatings (epoxy, Rilsan, nylon) for corrosion protection
15. Conclusion – The Clear Choice for Large Diameters
For pipeline diameters 6 inches and larger, butterfly valves deliver:
40–80% cost savings vs gate or ball valves
70–85% weight reduction – safer, cheaper installation
80–90% shorter length – fits in tight spaces
Fast quarter-turn operation
Excellent throttling capability
Lower actuator cost
Easier in-line maintenance
