Importance of Proper Valve Accessory Sizing

Date：2026-07-10 10:17:44 Author：Zhejiang Kinko Fluid Equipment Co., Ltd

1. The Cost of Incorrect Sizing

Sizing Error	Consequence	Typical Cost Impact
Actuator undersized	Fails to open/close under differential pressure	Process shutdown: $5,000–$50,000/event
Actuator oversized	Valve stem/bearing fatigue, seat damage	Premature valve rebuild: $2,500–$10,000
Positioner mismatched	Slow response, overshoot, hunting	Off-spec product: $1,000–$5,000/day
Solenoid under-powered	Intermittent shifting, coil burn-out	Replacement + downtime: $500–$2,000
FRL undersized	Pressure drop under load, slow stroking	Reduced throughput: variable
Mounting kit misaligned	Side-loading → packing leakage	Fugitive emissions + rebuild: $1,500–$4,000

Key takeaway: Accessory sizing is not "close enough"—it requires engineering precision.

2. Actuator Sizing – Torque and Thrust Matching

Sizing Factor	Why It Matters	Selection Guideline
Breakaway torque	Initial force to unseat valve	Must exceed max seat friction + stem friction
Running torque	Force to maintain position	Ensure actuator has 20–30% margin above running torque
End-of-stroke torque	Force at fully open/closed	Prevent seat over-compression or stem bending
Supply pressure available	Actual plant air vs design pressure	Size based on minimum expected pressure, not nominal
Fail-safe requirement	Spring-return vs double-acting	Spring torque must overcome breakaway at lowest pressure

Critical rule: Always size actuators at minimum supply pressure and maximum differential pressure—not at ideal conditions.

Parameter	Correctly Sized	Undersized	Oversized
Torque margin	25–30% above required	<10%	>50%
Stroking time	Meets process requirement	Slower than spec	Faster than needed (can cause water hammer)
Actuator life	Full design life	Premature stall/failure	Excessive stem/seat wear

3. Positioner Sizing – Flow Capacity and Response

Sizing Factor	Why It Matters	Selection Guideline
Air flow capacity (Cv)	Must match actuator volume and stroking time	Calculate based on actuator volume × stroke time
Input signal type	4–20 mA, 0–10 V, or digital	Match to control system output
Hysteresis / linearity	Affects control accuracy	Specify <0.5% for critical loops
Environmental temperature	Internal components degrade	Match to ambient + solar radiation
Diagnostic needs	Predictive maintenance	Consider smart positioners for critical valves

Common error: A positioner with insufficient air flow capacity causes slow response—even if the actuator is correctly sized.

Symptom	Root Cause in Sizing	Fix
Slow stroking	Positioner Cv too low for actuator volume	Upgrade to higher-flow positioner
Oscillation / hunting	Positioner gain too high for actuator size	Re-tune or select appropriate gain range
Calibration drift	Positioner not rated for ambient temperature	Select wider temperature range model


4. Solenoid Valve Sizing – Flow, Pressure, and Electrical

Sizing Factor	Why It Matters	Selection Guideline
Flow coefficient (Cv)	Must supply enough air to actuator	Match or exceed positioner/actuator flow demand
Operating pressure range	Pilot-operated vs direct-acting	Direct-acting for low pressure; pilot for high flow
Coil voltage	Field supply available	AC vs DC; must match control panel output
Inrush vs holding current	AC solenoids draw higher inrush	Ensure power supply can handle peak
Response time	On-off vs throttling service	Faster for high-cycle or safety applications

Critical rule: Solenoid valve Cv must be equal to or greater than the positioner's air flow capacity—otherwise the positioner becomes starved.

Sizing Error	Result	Prevention
Cv too low	Actuator stroking slower than design	Calculate total system Cv from FRL → solenoid → positioner → actuator
Coil voltage mismatch	Coil burns out or fails to shift	Verify supply voltage at solenoid terminals (under load)
Wrong body material	Corrosion or leakage in harsh media	Match material to environment and pilot medium

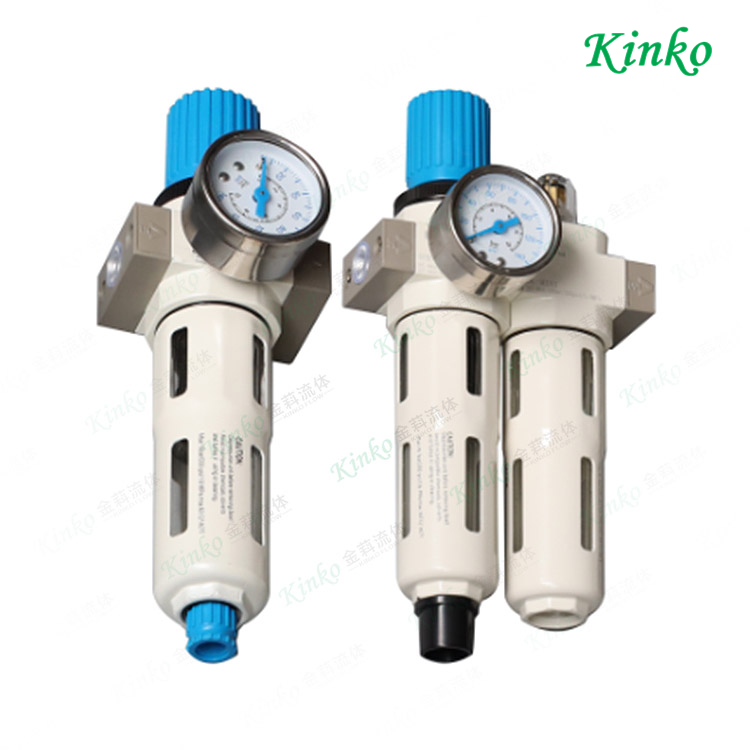

5. FRL Unit Sizing – Flow and Pressure Capacity

Sizing Factor	Why It Matters	Selection Guideline
Flow rate (SCFM / L/min)	Must exceed total downstream demand	Size at 120–150% of maximum system flow
Pressure drop at flow	Affects actuator available torque	Keep total drop <0.5 bar at rated flow
Filtration grade	Matches most sensitive component	5 μm for actuators; 1 μm + coalescing for positioners
Bowl / port size	Must fit pipeline and mounting	Match to main supply line; avoid reducers if possible

Common error: Sizing FRL based on line size rather than actual flow demand. A large line with low flow may still need a properly sized regulator for precision.

Parameter	Correctly Sized	Undersized	Oversized
Flow capacity	1.2× max system demand	<1.0×	>3× (wasted cost)
Pressure drop	<0.3 bar @ max flow	>0.7 bar → torque loss	Minimal (acceptable)
Drain capacity	Handles actual condensate load	Overwhelmed → water carryover	Overkill but harmless

6. Limit Switch Box Sizing – Mechanical and Electrical Match

Sizing Factor	Why It Matters	Selection Guideline
Shaft size and coupling	Must fit valve stem or actuator shaft	Match diameter and keyway; zero backlash preferred
Switch rating (voltage/current)	Must match PLC or DCS input	Confirm minimum load current for dry contacts
Number of contacts	Open, closed, and intermediate signals	Specify NO/NC combinations as per control logic
Enclosure size and entry	Cable termination and space	Allow for easy wiring; multiple conduit entries

Common error: A limit switch box with contacts rated for 250V AC used in a 24V DC low-current circuit—causes contact oxidation and intermittent feedback.

Sizing Error	Symptom	Fix
Shaft size mismatch	Coupling slips or binds	Use correct bore size or adjustable coupling
Contact rating mismatch	False feedback / no signal	Specify gold-plated or low-energy contacts for 24V DC
Insufficient cable entry	Difficulty wiring; strain on cables	Specify box with 2+ entries

7. Mounting Kit Sizing – Brackets, Couplings, and Hardware

Sizing Factor	Why It Matters	Selection Guideline
Bracket hole pattern	Must align with actuator and valve	Use standard ISO 5211 or customized to interface
Coupling backlash	Affects positioning repeatability	Specify <0.1° for rotary control valves
Stem extension length	Allows for thermal expansion and maintenance	Match valve stem height with actuator yoke
Bolt grade and material	Corrosion and vibration resistance	Use stainless steel for outdoor; high-grade for high torque

Critical rule: A perfectly sized actuator on a misaligned bracket will fail faster than an undersized actuator on a perfect bracket. Mounting precision is non-negotiable.

8. Integrated Sizing Checklist – All Accessories

For each valve assembly, verify these cross-accessory sizing checks:

Actuator torque ≥ (valve torque requirement + 25%) at minimum supply pressure
Positioner Cv ≥ actuator air consumption at required stroking time
Solenoid valve Cv ≥ positioner Cv (or direct actuator Cv for on-off)
FRL flow capacity ≥ solenoid Cv × 1.2 (at minimum inlet pressure)
FRL pressure drop + regulator droop + line losses < 15% of total supply
Limit switch contact rating matches control circuit (voltage, current, AC/DC)
Mounting bracket alignment tolerance ≤ ±0.2 mm
Coupling backlash ≤ 0.1° for control valves; ≤ 0.5° for on-off
All threaded fittings match (NPT vs BSP) to avoid cross-threading

9. Financial Impact Summary

Sizing Scenario	5-Year Cost (Parts + Labor + Downtime)	vs Optimally Sized
All accessories optimally sized	Baseline ($X)	–
Actuator undersized	3.5× baseline	+250%
Positioner under-sized (flow)	2.2× baseline	+120%
FRL undersized (droop)	1.8× baseline	+80%
Mounting kit misaligned	2.0× baseline	+100%
Solenoid mismatched (electrical)	1.6× baseline	+60%
