Why Angle Seat Valves for Compressed Air?
| Requirement | How Angle Seat Valve Meets It |
|---|---|
| High flow rate | Angled body minimizes pressure drop |
| Fast actuation | 20–50ms response time |
| Millions of cycles | Designed for high-frequency operation |
| Dry air compatibility | PTFE seals run without lubrication |
Typical applications: Air manifolds, blow-off nozzles, pneumatic conveying, air knives, instrument air.
Seal Material Selection
| Seal | Best For | Max Temp | Runs Without Lube? |
|---|---|---|---|
| PTFE | Oil-free, dry air | 180°C | Yes (recommended) |
| NBR | Lubricated air (with oiler) | 80°C | No |
| FKM | High-temp air (>100°C) | 200°C | No |
Kinko recommendation: PTFE for all compressed air applications. Longer life justifies the cost.
Sizing Guide (Kv / Cv)
| Port Size | DN | Kv (m³/h) | Cv |
|---|---|---|---|
| 3/8" | 10 | 3.5 | 4.0 |
| 1/2" | 15 | 6.0 | 7.0 |
| 3/4" | 20 | 9.0 | 10.5 |
| 1" | 25 | 14.0 | 16.3 |
| 1-1/2" | 40 | 30.0 | 34.9 |
| 2" | 50 | 48.0 | 55.8 |
Sizing rule: Select one size smaller than pipe diameter if pressure is above 6 bar.
Pilot Air Requirements (Critical)
| Valve Size | Min Pilot Pressure | Recommended |
|---|---|---|
| DN10 – DN25 | 3.5 bar (50 psi) | 4.5–8 bar |
| DN32 – DN50 | 4.0 bar (58 psi) | 5.0–8 bar |
| DN65 – DN100 | 4.5 bar (65 psi) | 5.5–8 bar |
Critical note: Low pilot pressure is the #1 cause of failure. The valve will buzz or fail to open fully.
Pilot air quality: 40µm filtration, -20°C dew point, oil-free for PTFE seals.
Installation Tips
Orientation: Actuator upward (prevents condensation collection)
Condensation: Use stainless steel body; avoid mounting after compressor without drying
Piping: Air Dryer → Filter → Receiver → Angle Seat Valve → Distribution
Do not install directly after an air compressor. Hot, wet air damages seals.
Normally Closed vs Normally Open
| Function | Type | Best For |
|---|---|---|
| Air off when idle | Normally Closed (NC) | 90% of distribution systems |
| Air on when idle | Normally Open (NO) | Venting, blow-off, purge |
Common Problems & Solutions
| Problem | Likely Cause | Solution |
|---|---|---|
| Valve fails to open | Low pilot pressure | Increase to 4.5–8 bar |
| Valve chatters | Fluctuating pilot pressure | Install pressure regulator |
| External air leak | Worn stem O-ring | Replace seal kit |
| Slow actuation | Clogged silencer | Clean or replace |
| Valve passes air when closed | Debris on seat | Cycle 5-10 times or replace disc |
Comparison: Angle Seat vs Other Valves
| Valve Type | Flow | Cycle Life | Best For |
|---|---|---|---|
| Angle Seat | High | 3–5 million | High-cycle, fast response |
| Ball Valve | Highest | 50k–200k | Infrequent operation |
| Solenoid Valve | Low | 50 million | Small lines (≤DN10) |
Choose angle seat over solenoid when: Line size ≥DN15, dirty air, or visual indicator needed.

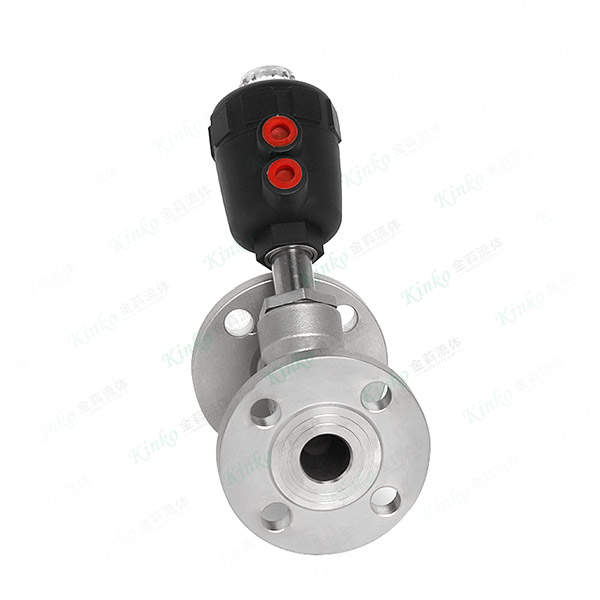

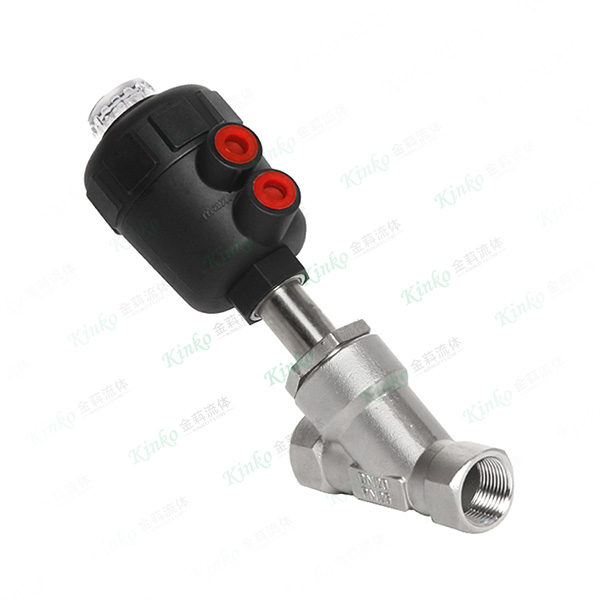

Kinko Angle Seat Valves for Compressed Air
| Feature | Specification |
|---|---|
| Body | 316L stainless steel |
| Seal | PTFE + 15% glass fiber (runs dry) |
| Pilot pressure | 3.5–10 bar |
| Response | 20–50ms |
| Cycle life | 3–5 million |
| IP rating | IP65 |
