Expected Lifespan by Application
| Application | Typical Lifespan (Cycles) | Typical Lifespan (Years) |
|---|---|---|
| Clean air / water (low cycle) | 3–5 million | 8–12 years |
| Steam service | 1–3 million | 3–6 years |
| High-cycle packaging (5000+/day) | 2–4 million | 2–4 years |
| Abrasive slurries | 500k–1 million | 1–3 years |
| Aggressive chemicals | 1–2 million | 3–5 years |
Key insight: Application conditions affect lifespan more than valve quality. Correct installation and maintenance are the real differentiators.
10 Tips to Extend Valve Lifespan
1. Install a Y-Strainer Upstream
Problem: Weld slag, rust, and debris damage the PTFE disc and seat.
Solution: Install a 40-mesh Y-strainer 5–10 pipe diameters before the valve.
Lifespan impact: +100–200% (debris is the #1 killer).
2. Verify Correct Flow Direction
Problem: Backward installation causes pressure to unseat the disc, leading to water hammer and rapid seal wear.
Solution: Follow the arrow on the body. Pressure must be above the seat (closing direction).
Lifespan impact: +300% (backward valves fail within weeks).
3. Maintain Proper Pilot Air Pressure
Problem: Low pressure causes incomplete stroke (chattering). High pressure damages piston seals.
Solution: Maintain 4.5–8 bar (65–116 psi) at the valve port. Use a regulator.
| Symptom | Cause | Fix |
|---|---|---|
| Chattering | Pressure too low | Increase to 4.5 bar+ |
| Slow opening | Low pressure or clogged silencer | Clean or increase pressure |
| Actuator hissing | Damaged seal (often from overpressure) | Replace seal, reduce pressure |
Lifespan impact: +200% (correct pressure is critical).
4. Use Clean, Dry Pilot Air
Problem: Wet or dirty air corrodes the actuator cylinder and damages piston seals.
Solution: Filter to 40µm, dry to -20°C dew point. Use lubricator only if consistently maintained.
Lifespan impact: +150%.
5. Install Speed Controllers (Flow Controls)
Problem: Fast closing causes water hammer, which stresses the seat, disc, and piping.
Solution: Install adjustable flow controls on actuator exhaust ports. Set closing speed to 0.5–2 seconds.
Lifespan impact: +100–300% in liquid systems.
6. Support Heavy Pipes
Problem: Heavy unsupported pipes stress the valve body, distorting the seat and causing internal leakage.
Solution: Install pipe supports within 12 inches of the valve on both sides.
Lifespan impact: +200% (prevents body distortion).
7. Replace Seals Proactively
Problem: Running until failure causes secondary damage (scored piston rod, damaged seat).
Solution: Follow replacement schedule:
| Application | PTFE Seal Replacement Interval |
|---|---|
| Clean media | Every 2 million cycles or 3 years |
| Steam | Every 1 million cycles or 2 years |
| Abrasive media | Every 500k cycles or 1 year |
Lifespan impact: +100% (prevents catastrophic failure).
8. Monitor the Weep Hole
Problem: External leakage often goes unnoticed until media enters the actuator.
Solution: Check the weep hole between body and actuator weekly. Any drip means stem seal replacement is due within 1–2 weeks.
Lifespan impact: +50% (prevents actuator destruction).
9. Keep the Silencer Clean
Problem: Clogged silencer creates backpressure, slowing actuation and causing incomplete strokes.
Solution: Replace silencer every 6–12 months. Use metal silencers in dusty environments.
Lifespan impact: +100%.
10. Match Seal Material to Media
Problem: Wrong seal material swells, hardens, or dissolves.
Solution: Use this quick guide:
| Media | Correct Seal | Wrong Seal (Avoid) |
|---|---|---|
| Steam | PTFE | FKM, EPDM, NBR |
| Mineral oil | FKM or NBR | EPDM |
| Hot water | PTFE or EPDM | NBR |
| Brake fluid | EPDM | FKM, NBR |
| Acids / caustics | PTFE | FKM, NBR |
Lifespan impact: +500% (wrong seal fails in days).
Lifespan Extension Summary Table
| Tip | Action | Lifespan Impact |
|---|---|---|
| 1 | Install Y-strainer | +100–200% |
| 2 | Correct flow direction | +300% |
| 3 | Proper pilot pressure (4.5–8 bar) | +200% |
| 4 | Clean, dry pilot air | +150% |
| 5 | Speed controllers for liquid | +100–300% |
| 6 | Support heavy pipes | +200% |
| 7 | Proactive seal replacement | +100% |
| 8 | Monitor weep hole | +50% |
| 9 | Clean silencer regularly | +100% |
| 10 | Match seal material | +500% |
Signs Your Valve Needs Attention (Before Failure)
| Sign | What It Means | Action |
|---|---|---|
| Drip from weep hole | Stem seal worn | Replace within 2 weeks |
| Slower actuation | Clogged silencer or low pressure | Clean silencer, check pressure |
| Chattering | Low pilot pressure | Increase to 4.5 bar+ |
| Visible leakage across seat | Worn PTFE disc | Replace disc |
| Unusual noise during closing | Water hammer | Add speed controller |
| Position indicator not moving | Piston or pilot valve failure | Inspect immediately |
What Shortens Lifespan (Avoid These)
| Mistake | Result | Typical Lifespan Reduction |
|---|---|---|
| No strainer | Debris destroys seat | -80% |
| Backward installation | Water hammer, seal failure | -90% |
| Low pilot pressure | Chattering, incomplete stroke | -70% |
| Wet pilot air | Actuator corrosion | -60% |
| No pipe support | Body distortion, leakage | -70% |
| Running until seal fails | Scored rod, damaged body | -50% |
| Wrong seal material | Swelling or melting | -95% |

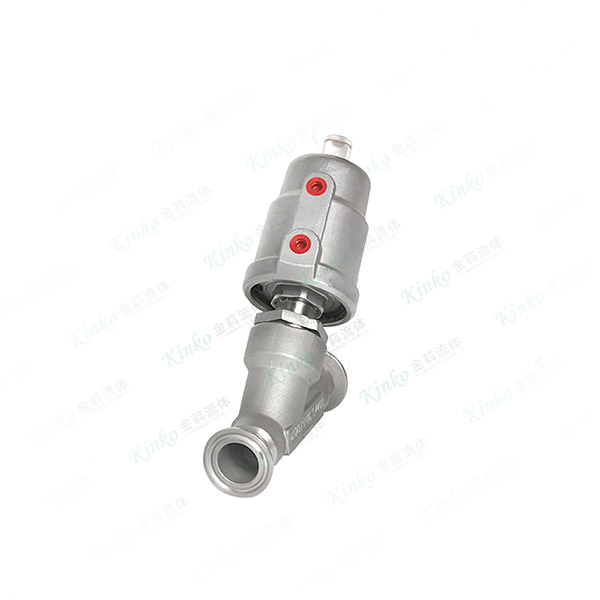

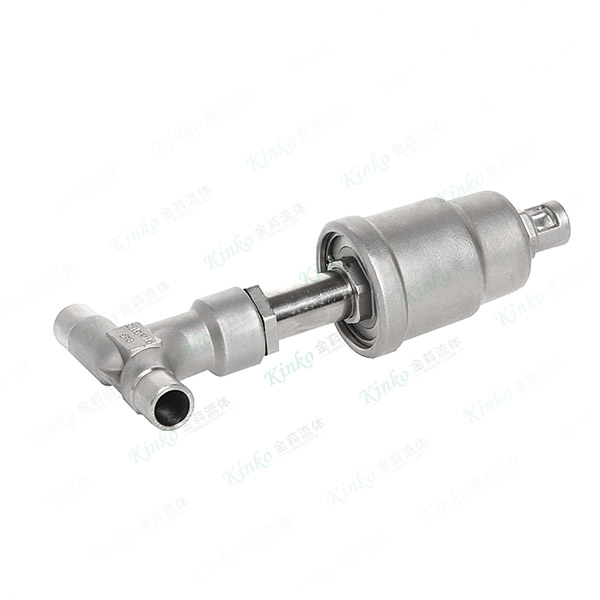

Kinko Valves: Designed for Long Life
Kinko angle seat valves include features that extend lifespan:
| Feature | Benefit |
|---|---|
| PTFE + 15% glass seal | 3–5x longer wear life |
| Double O-ring stem seals | Redundant sealing, early leak detection |
| 316L stainless steel body | No corrosion, no body replacement |
| 360° rotatable actuator | Easy orientation, no pipe stress |
| IP65 protection | Dust-tight, washdown ready |
