How to Test the Performance of a New Valve Actuator

Date：2026-04-03 17:21:07 Author：Zhejiang Kinko Fluid Equipment Co., Ltd

1. Visual Inspection

Check Item	Acceptance Criteria
Model number	Matches purchase order
Torque / thrust rating	Meets application requirement
Mounting flange (ISO 5211)	Correct size (F03, F05, F07, F10, etc.)
Drive type (square, keyed, etc.)	Matches valve stem
Port connections (NPT, BSPT, G)	Correct thread type
Solenoid valve (if included)	Correct voltage (24V DC, 110V AC, 220V AC)
Positioner (if included)	Correct signal type (4–20mA, 0–10V)
Physical damage	No cracks, dents, or corrosion

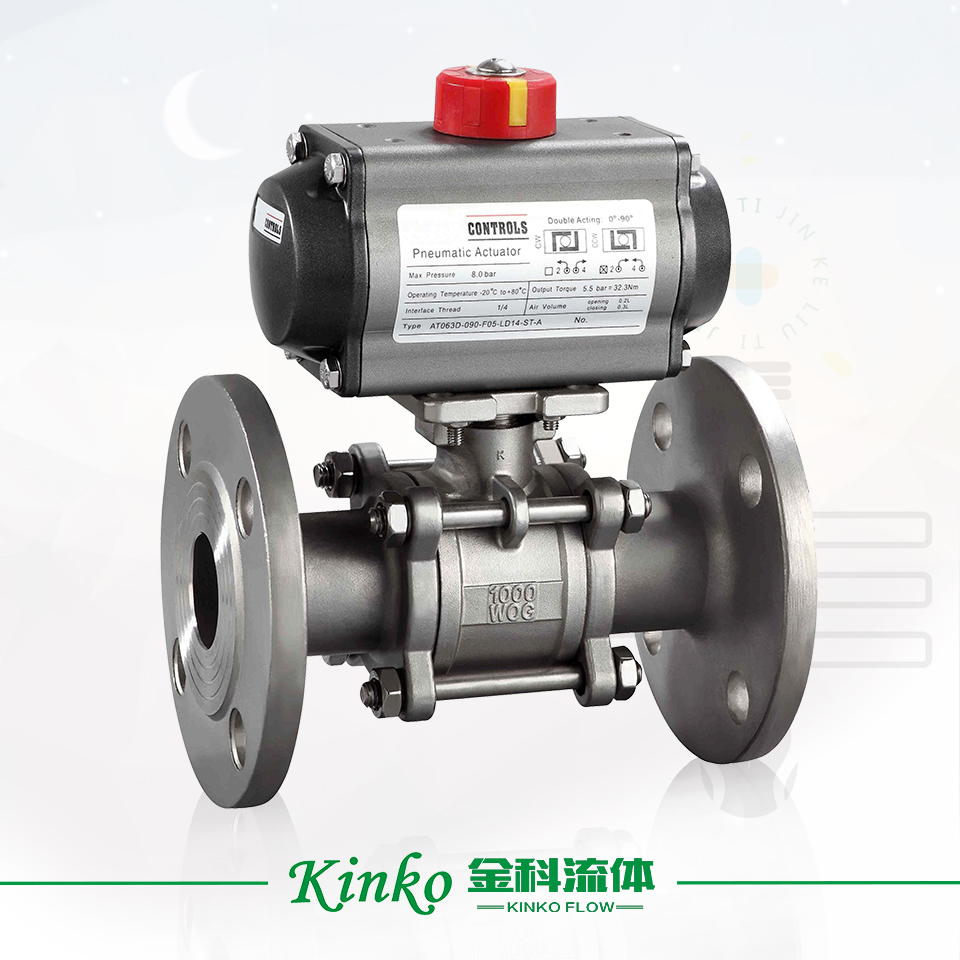

Nameplate	Legible, matches documentation

2. Bench Test (No Load)

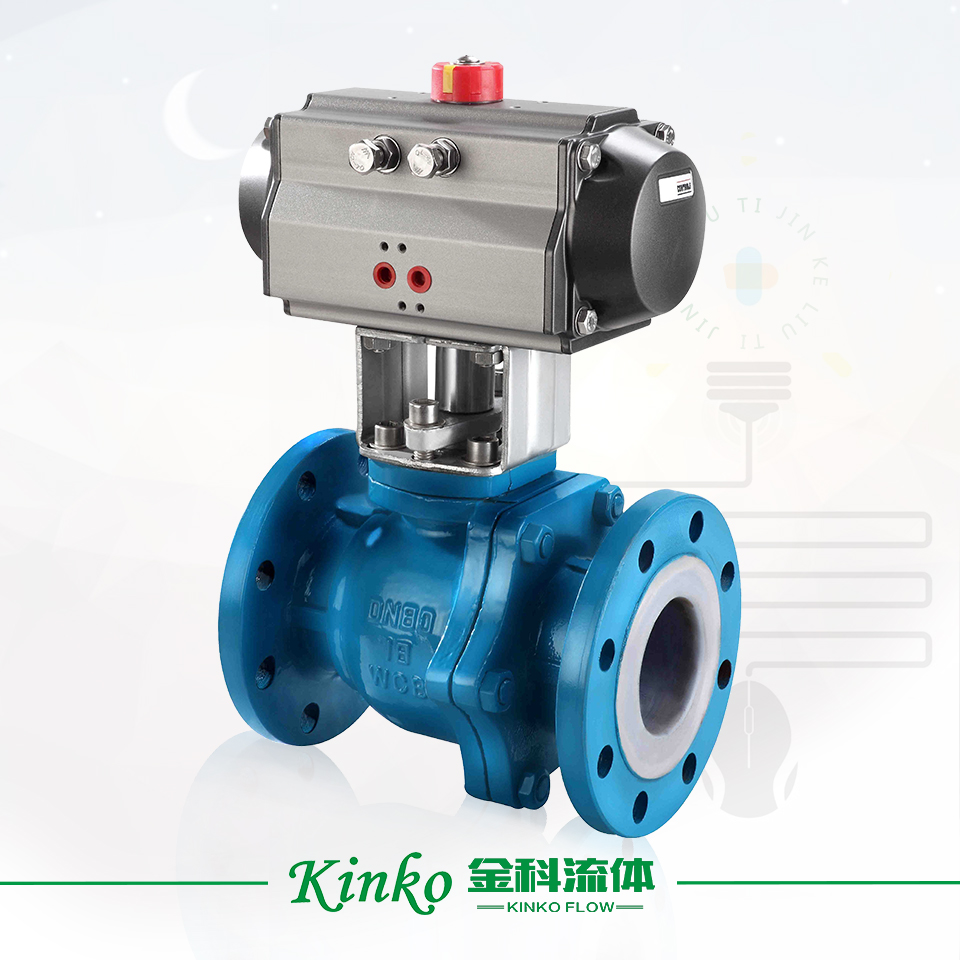

2.1 Pneumatic Actuator

Step	Action	Expected Result
1	Connect air supply (4–8 bar)	No leaks at fittings
2	Apply air to port A	Actuator rotates/strokes fully
3	Apply air to port B	Actuator returns to original position
4	Cycle 5–10 times	Smooth, consistent movement
5	Listen for abnormal noise	No grinding or clicking

2.2 Electric Actuator

Step	Action	Expected Result
1	Connect power (verify voltage)	No error indicators
2	Apply open command	Actuator rotates/strokes fully
3	Apply close command	Actuator returns to original position
4	Cycle 5–10 times	Smooth, consistent movement
5	Check manual override	Operates freely

Test Record Template

Parameter	Measured Value	Specification
Full stroke time (open)	____ sec	≤ ____ sec
Full stroke time (close)	____ sec	≤ ____ sec
Current draw (electric)	____ A	≤ ____ A
Air consumption (pneumatic)	____ L/min	≤ ____ L/min
Noise level	____ dB	≤ ____ dB

3. Torque / Thrust Test

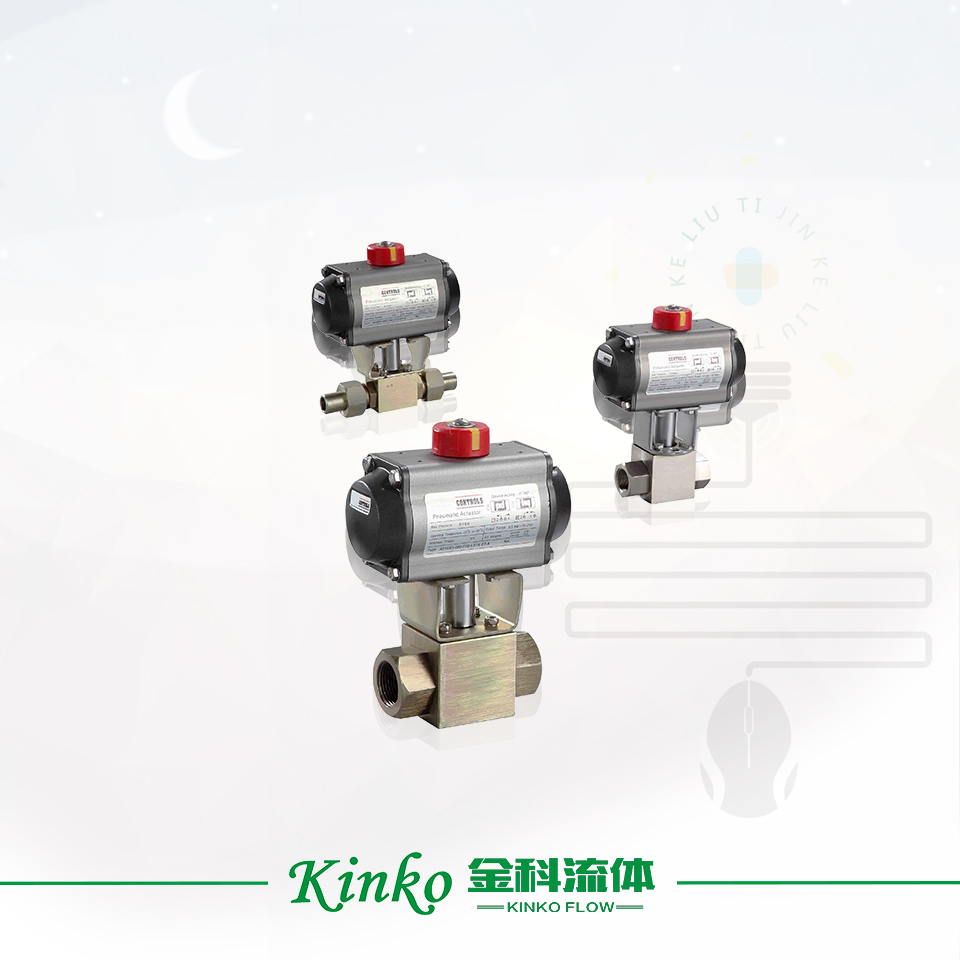

For Quarter-Turn Actuators (Ball, Butterfly, Plug)

Test Point	Method	Acceptance
Breakaway torque	Measure torque at 0°	Within spec (±10%)
Running torque	Measure torque at 45°	Within spec (±10%)
Seating torque	Measure torque at 85–90°	Within spec (±10%)

For Linear Actuators (Gate, Globe)

Test Point	Method	Acceptance
Breakaway thrust	Measure at start of stroke	Within spec (±10%)
Running thrust	Measure mid-stroke	Within spec (±10%)
Seating thrust	Measure at end of stroke	Within spec (±10%)

Torque Measurement Options

Method	Accuracy	Equipment Required
Torque wrench	±3–5%	Torque wrench, adapter
Inline torque sensor	±0.5–1%	Torque sensor, display
Pressure-to-torque (pneumatic)	±5–10%	Pressure gauge, calculation

4. Cycle Test

Purpose

Validate actuator durability and repeatability under simulated operating conditions.

Test Protocol

Parameter	Recommendation
Number of cycles	100–500 (benchmark) or 10% of rated life
Cycle speed	Normal operating speed
Load	Connected to valve or equivalent torque load
Ambient temperature	Room temperature (or application condition)
Monitoring	Stroke time, current draw, air consumption, leakage

Cycle Test Record

Cycle #	Open Time (sec)	Close Time (sec)	Current (A)	Notes
1
50
100
200
500

Acceptance Criteria: No significant change (>10%) in stroke time, current draw, or torque throughout the test.

5. Leak Test (Pneumatic Actuators)

External Leak Test

Location	Method	Acceptance
Air fittings	Soapy water	No bubbles
Housing seals	Soapy water	No bubbles
Shaft seals	Soapy water	Minimal bubbles (≤1 bubble/10 sec)
Solenoid valve exhaust	Listen / feel	No continuous leakage

Internal Leak Test (Cross-Port Leakage)

Step	Action	Expected Result
1	Apply pressure to port A, port B open	No air from port B
2	Apply pressure to port B, port A open	No air from port A
3	Measure pressure decay	≤5% over 1 minute

Acceptable Leakage Rates

Actuator Type	External Leakage	Internal Leakage
New actuator	0	<0.1% of supply
In-service	<1 bubble/10 sec	<1% of supply

6. Position Accuracy Test (Modulating Actuators)

Test Setup

Signal generator (4–20mA or 0–10V)
Position feedback measurement (potentiometer, encoder, or external sensor)
Data recorder

Test Points

Signal Value	Expected Position	Measured Position
4 mA (0%)	0° / 0%	____° / ____%
8 mA (25%)	90° / 25%	____° / ____%
12 mA (50%)	180° / 50%	____° / ____%
16 mA (75%)	270° / 75%	____° / ____%
20 mA (100%)	360° / 100%	____° / ____%

Hysteresis Test

Step	Action	Expected Result
1	Ramp signal from 4mA to 20mA	Record positions
2	Ramp signal from 20mA to 4mA	Record positions
3	Calculate hysteresis	≤1% of full scale

Acceptance Criteria

Actuator Grade	Linearity Error	Hysteresis	Repeatability
Standard	±2–5%	≤3%	≤2%
High-grade	±0.5–1%	≤1%	≤0.5%
Precision	±0.2–0.5%	≤0.5%	≤0.2%

7. Fail-Safe Test

For Spring Return Pneumatic Actuators

Test	Procedure	Acceptance
Air-off return	Remove air supply while at open position	Returns to closed within spec time
Return speed	Measure time from air-off to fully closed	≤2 seconds (or per spec)
Spring integrity	Cycle 5 times, listen for unusual sounds	Smooth, quiet operation

For Electric Actuators with Backup

Test	Procedure	Acceptance
Power-off return	Remove power while at open position	Returns to fail-safe position
Backup battery/spring	Verify operation without main power	Full stroke achieved
Return time	Measure time to fail-safe position	Within specification

8. Environmental Test (Optional)

Temperature Test

Condition	Test Method	Acceptance
Low temperature	Operate at -20°C / -4°F	No freezing, smooth operation
High temperature	Operate at +80°C / +176°F	No seal failure, consistent torque
Thermal cycling	Cycle between extremes	No permanent deformation

IP Rating Verification

IP Rating	Test Method	Acceptance
IP65	Water jet (12.5mm nozzle)	No water ingress
IP66	Powerful water jets	No water ingress
IP67	Immersion (1m for 30 min)	No water ingress
IP68	Immersion (specified depth)	No water ingress

9. Mounted Test (Valve Connected)

After bench testing, connect the actuator to the actual valve and perform the following:

Test	Procedure	Acceptance
Mounting alignment	Check for binding or resistance	Smooth manual operation
Full stroke verification	Cycle fully open to fully closed	Valve reaches both stops
Seat shut-off	Pressure test across closed valve	Zero leakage (or class VI)
Dynamic response	Step changes in signal	Stable, no hunting
Limit switch setting	Verify open/closed indication	Correct signal at each position

10. Test Equipment Checklist

Equipment	Purpose
Air compressor (clean, dry)	Pneumatic actuator testing
Pressure regulator with gauge	Control test pressure
Power supply (variable)	Electric actuator testing
Multimeter	Voltage, current, continuity
Signal generator (4–20mA / 0–10V)	Modulating actuator testing
Torque wrench or sensor	Torque verification
Stopwatch	Stroke time measurement
Soapy water solution	Leak detection
Infrared thermometer	Temperature monitoring
Data logger (optional)	Long-term cycle recording

11. Test Report Template

Section	Information
General Information
Test date
Tester name
Actuator model
Serial number
Visual Inspection	Pass / Fail (notes)
Bench Test	Pass / Fail (data)
Torque/Thrust Test	Pass / Fail (data)
Cycle Test (100 cycles)	Pass / Fail
Leak Test	Pass / Fail
Position Accuracy	___% error
Hysteresis	___%
Fail-Safe Test	Pass / Fail
Mounted Test	Pass / Fail
Overall Result	Pass / Fail
Recommendation	Ready for service / Needs repair / Reject
