Why Actuator Reliability Drives Process Control Success
Process control loops depend on every component performing predictably. The actuator is often the most mechanically stressed element in the loop.
| Reliability Factor | Impact on Process Control |
|---|---|
| Position accuracy | Directly affects flow regulation and product quality |
| Cycle life | Determines maintenance intervals and total cost of ownership |
| Sealing integrity | Prevents fugitive emissions and environmental violations |
| Fail-safe behavior | Ensures safe shutdown during power or signal loss |
| Environmental tolerance | Allows operation in extreme temperatures, humidity, or corrosive atmospheres |
A reliable actuator does not just open and close a valve. It provides repeatable positioning, consistent torque output, and predictable failure modes.
Electric vs. Pneumatic Actuators: Selection Guide
Kinko manufactures both electric and pneumatic actuator families. The right choice depends on your facility's utilities, control architecture, and safety requirements.
| Parameter | Electric Actuator | Pneumatic Actuator |
|---|---|---|
| Power source | AC or DC power (24V, 110V, 220V, 380V) | Compressed air (40–120 PSI) |
| Control signal | 4-20 mA, 0-10V, Modbus, Profibus | 3/2 or 5/2 solenoid valve signal |
| Position feedback | Built-in potentiometer or encoder | Limit switches or positioner |
| Fail-safe | Spring-return or battery backup | Spring-return (standard option) |
| Duty cycle | S4 or S5 intermittent (modulating) | Continuous (if air supply is constant) |
| Typical torque range | 10 Nm to 10,000+ Nm | 5 Nm to 20,000+ Nm |
| Hazardous area rating | Ex d, Ex e, Ex nA available | Ex d, Ex ia available |
| Best application | Remote sites, clean rooms, precise modulation | Explosive atmospheres, high cycle rates, low cost per torque |
Kinko recommendation: For modulating service requiring precise positioning (e.g., chemical injection, pH control), choose electric actuators. For high-speed on/off duty in explosive environments (e.g., oil refineries), choose pneumatic actuators with spring-return fail-safe.
Technical Specifications: Kinko Actuator Range
Below are representative specifications for Kinko's core actuator product lines. Actual values vary by model—consult Kinko datasheets for exact numbers.
| Actuator Type | Torque Range (Nm) | Supply Voltage / Air Pressure | Enclosure Rating | Control Type | Typical Valve Compatibility |
|---|---|---|---|---|---|

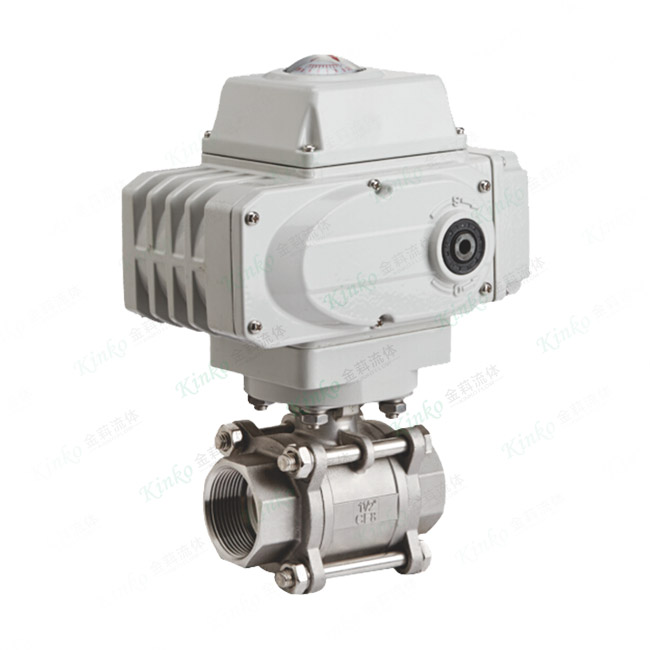

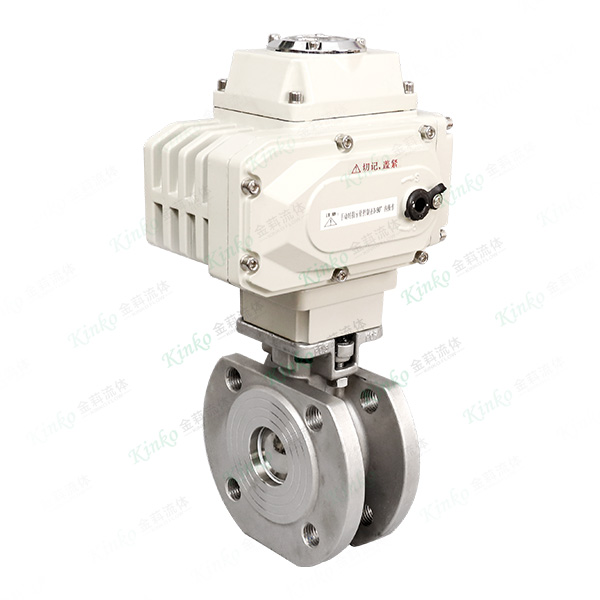

| Electric quarter-turn | 10 – 500 | 110/220V AC, 24V DC | IP67 | On/off or modulating (4-20mA) | Butterfly valves up to DN200 |
| Electric quarter-turn (high torque) | 600 – 5,000 | 220/380V AC, 24V DC | IP68 (optional) | Modulating with positioner | Ball valves, plug valves |
| Pneumatic double-acting | 8 – 2,000 | 40 – 120 PSI | IP66 (aluminum housing) | On/off with solenoid | Butterfly valves, ball valves |
| Pneumatic spring-return | 6 – 1,500 (spring torque) | 40 – 120 PSI | IP66 | Fail-safe closed/open | Emergency shutdown (ESD) valves |
| Electric hazardous area | 50 – 2,000 | 110/220V AC | IP66 / Ex d IIB T4 | Modulating or on/off | Oil & gas isolation valves |
Note: All Kinko actuators meet ISO 5211 mounting dimensions (F03, F05, F07, F10, F12, F14, F16) for direct bolt-on compatibility with major valve brands.
Five Common Industrial Process Control Challenges (And Kinko Solutions)
Challenge 1: Sticky or High-Friction Valves
Over time, process media (slurry, polymers, corrosive fluids) increases valve breakaway torque.
Kinko solution: Select actuators with a torque safety factor of 1.5x to 2.0x measured running torque. Kinko high-torque electric actuators provide up to 5,000 Nm for stubborn valves.
Challenge 2: Loss of Power or Air Supply
A sudden utility failure must not create unsafe conditions.
Kinko solution: For electric actuators, add battery backup or supercapacitor modules. For pneumatic actuators, specify spring-return. Both ensure the valve moves to a predefined safe position.
Challenge 3: Harsh Outdoor Environments
Rain, salt spray, dust, and extreme temperatures degrade standard actuators within months.
Kinko solution: Specify IP68 (temporary submersion) or NEMA 6P enclosures. Kinko offers stainless steel actuator bodies for offshore and chemical plant applications.
Challenge 4: Precise Modulating Control
Simple on/off actuators cause hunting and overshoot in proportional control loops.
Kinko solution: Use Kinko modulating electric actuators with built-in PID controllers and 4-20 mA feedback. Position accuracy reaches ±0.5% to ±1.0% of full scale.
Challenge 5: Explosive Atmospheres (Zone 1, Zone 2)
Standard electrical actuators cannot be used in hazardous areas without explosion-proof certification.
Kinko solution: Kinko hazardous area electric actuators carry ATEX, IECEx, or CSA certification for gas groups IIA, IIB, and IIB3+H2. Pneumatic actuators are inherently safe for most explosive environments when properly bonded.
Installation Best Practices for Long-Term Reliability
To maximize actuator life in process control applications, follow these Kinko-recommended guidelines:
| Step | Action |
|---|---|
| 1. Mounting | Use ISO 5211 brackets and couplings. Never force alignment. |
| 2. Torque setting | Program electric actuator torque switches at 80% of stall torque. |
| 3. Air preparation (pneumatic) | Install filter-regulator-lubricator (FRL) within 3 meters of actuator. |
| 4. Signal wiring (electric) | Use shielded twisted pair cables for 4-20 mA. Ground one end only. |
| 5. Limit switch adjustment | Set travel limits with 2-3 degrees of overtravel margin. |
| 6. Fail-safe test | Simulate power loss within 24 hours of installation. |
| 7. Documentation | Record torque, cycle time, and position feedback baseline values. |
Why Kinko for Industrial Process Control Actuation?
Kinko focuses exclusively on valve actuation for industrial processes. Our advantages include:
ISO 9001 certified manufacturing with full traceability
Standardized ISO 5211 mounting across all models—no custom brackets needed
Global voltage compatibility (110V, 220V, 380V, 415V, 50/60 Hz)
Fast customization for special voltages, shafts, enclosures, and coatings
Technical support available for pre-sales sizing and post-sales troubleshooting
Conclusion
Reliable actuator solutions are the backbone of industrial process control. Whether your application requires explosion-proof electric actuation, fail-safe pneumatic spring-return, or high-torque modulating control, Kinko delivers consistent, documented performance.
Not sure which actuator fits your process? Contact Kinko with your valve type, torque requirement, and control signal. We will respond with a datasheet and a sizing recommendation.
FAQ: Kinko Actuators for Process Control
Q: Can Kinko electric actuators be used for continuous modulation?
A: Yes. Kinko modulating electric actuators are rated for S4 or S5 duty. For very high cycle rates (over 1,200 starts per hour), consult Kinko engineering for a duty cycle calculation.
Q: Do Kinko pneumatic actuators require lubricated air?
A: For maximum life, use a lubricator set to 1-2 drops per minute of ISO VG 32 oil. Short-term dry air operation is acceptable but reduces seal life.
Q: What is the standard warranty on Kinko actuators?
A: Kinko offers an 18-month warranty from date of shipment or 12 months from commissioning, whichever occurs first.
Q: Can I receive a sample actuator for testing?
A: Yes. Contact Kinko sales to request a sample unit for pilot testing or certification validation.
