How to Choose Between Brass and Stainless Steel Ball Valves

Date：2026-05-16 10:51:18 Author：Zhejiang Kinko Fluid Equipment Co., Ltd

Quick Answer: Brass or Stainless?

If you need...	Choose...
Lowest cost	Brass
Corrosion resistance (water, chemicals)	Stainless steel (SS316)
Potable water (drinking)	Brass (low-lead) or SS316
High temperature (>120°C / 250°F)	Stainless steel
Marine / saltwater environment	Stainless steel (SS316)
High pressure (>600 psi)	Stainless steel
Non-corrosive gases / air	Brass
Food / pharmaceutical / sanitary	Stainless steel (SS316L)
Outdoor / humid environment	Stainless steel

Material Composition Overview

Property	Brass	Stainless Steel 304	Stainless Steel 316
Primary composition	Copper + Zinc (typically 60-40 or 65-35)	18% Chromium + 8% Nickel	16% Chromium + 10% Nickel + 2% Molybdenum
Corrosion resistance	Good (clean water, air)	Excellent (general purpose)	Superior (chemicals, saltwater)
Magnetic	No	Slightly (after cold working)	Slightly
Lead content	Varies (standard vs low-lead)	None	None
Relative cost (1x baseline)	1x (baseline)	2–3x	3–4x
Machinability	Excellent	Good	Good

Detailed Comparison by Selection Factor

1. Corrosion Resistance

Environment	Brass	SS304	SS316
Fresh water (room temp)	Good	Excellent	Excellent
Hot water (>60°C / 140°F)	Fair (dezincification risk)	Excellent	Excellent
Saltwater / brackish	Poor (rapid corrosion)	Fair (pitting possible)	Excellent
Steam	Poor	Good	Good
Dilute acids (acetic, citric)	Poor	Good	Excellent
Dilute bases (NaOH)	Fair	Excellent	Excellent
Chlorides (bleach, pool chemicals)	Poor	Poor (pitting)	Good
Ammonia	Poor	Good	Good
Outdoor / humid	Fair (tarnishing)	Excellent	Excellent

Key risk: Brass exposed to hot water or high chlorides can experience dezincification – zinc leaches out, leaving porous, weak copper. Use dezincification-resistant (DZR) brass for hot water.

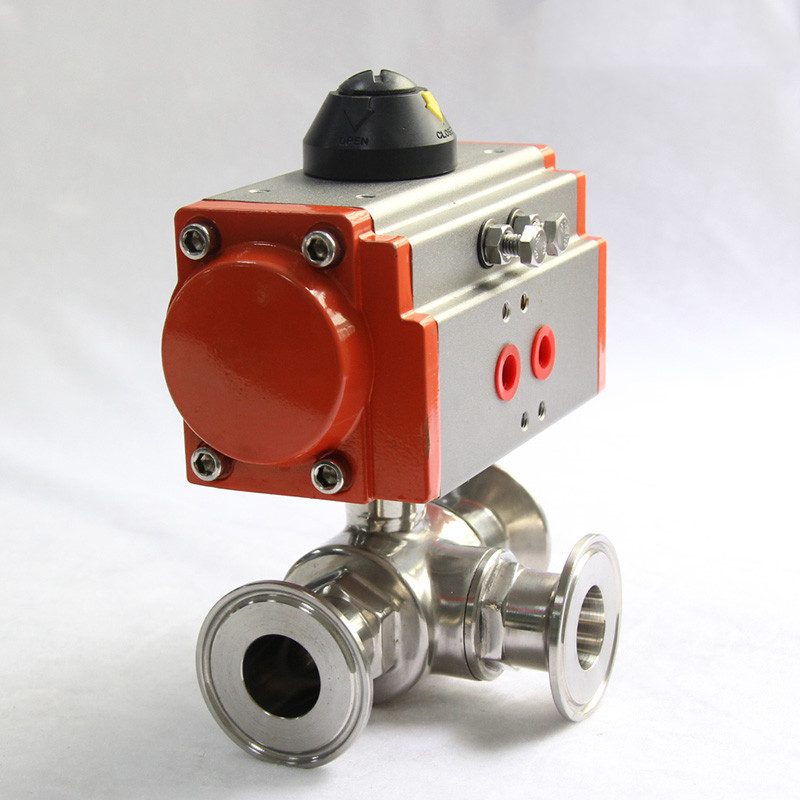

3way tri-clamp ball vavle (15).jpg

2. Temperature Limits

Material	Minimum Temp	Maximum Continuous Temp	Maximum Intermittent
Brass	-20°C (-4°F)	90°C (194°F)	120°C (248°F)
SS304 / SS316	-40°C (-40°F)	400°C (752°F)	550°C (1022°F)

Implication: For steam, hot oil, or high-temperature processes, stainless steel is mandatory. Brass softens and fails above 120°C.

3. Pressure Ratings

Typical pressure limits for threaded ball valves at room temperature:

Valve Size	Brass (Class 600 WOG)	SS316 (Class 1000 WOG)
1/4" – 1/2"	600 psi WOG	1000 psi WOG
3/4" – 1"	600 psi WOG	1000 psi WOG
1-1/4" – 2"	400–600 psi WOG	800–1000 psi WOG

WOG = Water, Oil, Gas pressure rating. Brass valves rated for 600 WOG are suitable for up to 600 psi cold water, but pressure derates at higher temperatures.

4. Cost Comparison (Typical 1" Threaded Ball Valve)

Valve Type	Approximate Cost	Relative Cost
Brass (standard)	$5-$ 15	1x
Brass (low-lead, potable water)	$10-$ 25	1.5–2x
SS304	$15-$ 35	2–3x
SS316	$25-$ 50	3–4x

Note: Large-diameter valves (2"+) have wider cost gaps. Flanged stainless steel valves cost significantly more than brass (brass flanged valves are rare).

5. Potable Water / Drinking Water Compliance

Material	NSF/ANSI 61 Certified?	Lead content	Suitable for drinking water?
Standard brass	No (lead >0.25%)	Up to 2-4% lead	No
Low-lead brass	Yes	≤0.25% lead	Yes
SS304 / SS316	Yes (with certification)	0% lead	Yes

Critical: In many jurisdictions (US, EU), standard brass is illegal for potable water. Specify low-lead brass or stainless steel.

6. Appearance & Aesthetics

Material	Appearance	Tarnishes?	Suitable for visible installations?
Brass	Gold / yellow	Yes (darkens over time)	Yes (traditional look)
Stainless steel	Silver / metallic	No (maintains finish)	Yes (modern look)

Application-Specific Recommendations

Application	Recommended Material	Why
Residential water shutoff	Low-lead brass	Low cost, adequate for cold/warm water
Commercial building water	SS316 or DZR brass	Hot water requires dezincification resistance
Compressed air system	Brass	Cost-effective, no corrosion concern
Chemical plant	SS316	Wide chemical compatibility
Marine / dock / boat	SS316	Saltwater resistance
Food processing	SS316L	Sanitary, cleanable, non-reactive
Irrigation / agriculture	Brass or SS304	Adequate for water and fertilizers
HVAC chilled water	Brass	Low cost, closed loop
Steam lines	SS304 or SS316	Brass cannot handle steam
Natural gas	Brass (yellow handle)	Industry standard, cost-effective
Swimming pool (chlorine)	SS316	Chlorine attacks brass
Outdoor exposed	SS304 or SS316	Brass tarnishes and may corrode

When to Choose Brass Ball Valves

✅ Good choice for:

Clean cold or warm water (<90°C / 194°F)
Compressed air
Natural gas / LPG (yellow-handle certified)
Low-pressure hydraulic oil
Non-corrosive chemicals
Budget-limited projects
Residential, commercial plumbing
Irrigation systems

❌ Avoid brass for:

Saltwater / marine
Chlorinated water (pools, bleach)
High temperature (>120°C / 248°F)
Steam
Strong acids or bases
Deionized water (leaches zinc)
Outdoor coastal environments

When to Choose Stainless Steel Ball Valves

✅ Good choice for:

Chemical processing
High temperature (steam, hot oil)
Saltwater / marine environments
Food, beverage, pharmaceutical
Potable water (NSF certified)
Outdoor exposed installations
High pressure (>600 psi)
Corrosive or aggressive fluids
Long service life (20+ years)

❌ Avoid stainless steel for:

Very tight budgets (brass may suffice)
Non-critical, clean water applications (over-specification)
Concentrated hydrochloric acid (Hastelloy or specialty alloys needed)

Decision Matrix: Brass vs Stainless Steel

Score each factor (1-5) based on your application:

Factor	Brass Score	SS Score	Weight for Your Project
Low initial cost	5	2	___
Corrosion resistance	2	5	___
High temperature	1	5	___
High pressure	3	5	___
Potable water (low-lead)	4	5	___
Saltwater service	1	5	___
Food/pharma grade	1	5	___
Availability (small sizes)	5	4	___
Availability (large sizes 2"+)	2	5	___

Total weighted score → Higher score indicates better material choice.

Kinko Brass Ball Valve Specifications

Parameter	Kinko Brass Series (Model KBV-B)
Size range	1/4" – 2" (DN8 – DN50)
Pressure rating	600 WOG (water, oil, gas)
Temperature range	-20°C to +120°C (-4°F to 248°F)
Body material	Forged brass (CW617N or equivalent)
Ball material	Chrome-plated brass or SS304
Stem material	SS304 or brass
Seat material	PTFE
End connections	Threaded (NPT, BSP, BSPT)
Options	Low-lead (NSF/ANSI 61), Lockable handle, Female/Female

Kinko Stainless Steel Ball Valve Specifications

Parameter	Kinko SS Series (Model KSSV-304 / KSSV-316)
Size range	1/4" – 4" (DN8 – DN100) threaded; up to 12" flanged
Pressure rating	1000 WOG (SS316), 800 WOG (SS304)
Temperature range	-40°C to +230°C (PTFE seats); up to 550°C (metal seats)
Body material	CF8 (SS304) or CF8M (SS316)
Ball material	SS304 / SS316 (mirror polished)
Stem material	SS304 / SS316
Seat material	PTFE, RTFE, PEEK
End connections	Threaded, Flanged, Socket Weld, Butt Weld
Options	Fire-safe, Low-emission, Sanitary (tri-clamp)

Common Mistakes to Avoid

Mistake	Consequence	Correct Choice
Brass in saltwater	Rapid corrosion, leaking within months	SS316
Brass in hot water (>60°C)	Dezincification, porous body	DZR brass or SS316
Standard brass for drinking water	Lead contamination	Low-lead brass or SS316
SS304 in pool / bleach service	Pitting corrosion	SS316 or higher
Brass for steam	Valve failure at high temp	SS304 or SS316
Over-specifying SS316 for compressed air	Wasted budget	Brass
