A motorized ball valve is only useful if your control system knows its position. Without feedback, you are operating blind.
Position feedback tells your PLC, DCS, or BMS whether the valve is open, closed, or somewhere in between.
At Kinko, we manufacture electric actuated ball valves with multiple feedback options. This guide helps you choose the right one.
Why Position Feedback Matters
| Without Feedback | With Feedback |
|---|---|
| Unknown valve status | Real-time open/closed indication |
| No remote diagnostics | Alarm on failure |
| Cannot interlock safely | Safe sequence control |
| Manual verification required | Full remote operation |
Types of Position Feedback
| Feedback Type | Signal | Best For |
|---|---|---|
| Visual only | None (local indicator) | Local viewing, no remote needs |
| Limit switches | Dry contacts (open/closed) | PLC discrete inputs, interlock logic |
| Potentiometer | 0-1kΩ / 0-5kΩ | Analog input (resistance), older systems |
| 4-20mA transmitter | 4-20mA loop | Long distance, modern PLC analog inputs |
| 0-10V transmitter | 0-10V | Short runs, building automation (BMS) |
| Bus communication | Modbus RTU, BACnet | Large networks, data logging |
Quick Selection Guide
| Your Control System | Recommended Feedback |
|---|---|
| No remote monitoring | Visual only |
| PLC with discrete inputs | Limit switches (dry contacts) |
| PLC with analog inputs (long distance) | 4-20mA transmitter |
| PLC with analog inputs (short distance) | 0-10V |
| Building management system (BMS) | BACnet or 0-10V |
| Large network (many valves) | Modbus RTU |
Feedback Type Comparison
| Parameter | Limit Switches | 4-20mA | 0-10V | Modbus |
|---|---|---|---|---|
| Signal type | Dry contact (NO/NC) | Current loop | Voltage | Digital |
| Resolution | Binary (open/closed) | Continuous (0.5-1%) | Continuous | Continuous |
| Max cable length | <1000m | <1000m | <50m | <1200m |
| Wiring complexity | Low (3-4 wires) | Medium (2 wires) | Medium (3 wires) | Low (2-4 wires shared) |
| Relative cost | 1.2–1.5x baseline | 2–3x baseline | 2–3x baseline | 3–5x baseline |
Wiring Basics
Limit Switches to PLC Discrete Input
Actuator COM ──── PLC 0VDC Actuator OPEN ─── PLC DI1 (open) Actuator CLOSED ─ PLC DI2 (closed)
4-20mA (Loop-Powered) to PLC Analog Input
24VDC Power (+) ─── Actuator (+) Actuator (-) ───── PLC AI (+) ───── Power (-)
Note: 4mA = 0% closed, 20mA = 100% open.

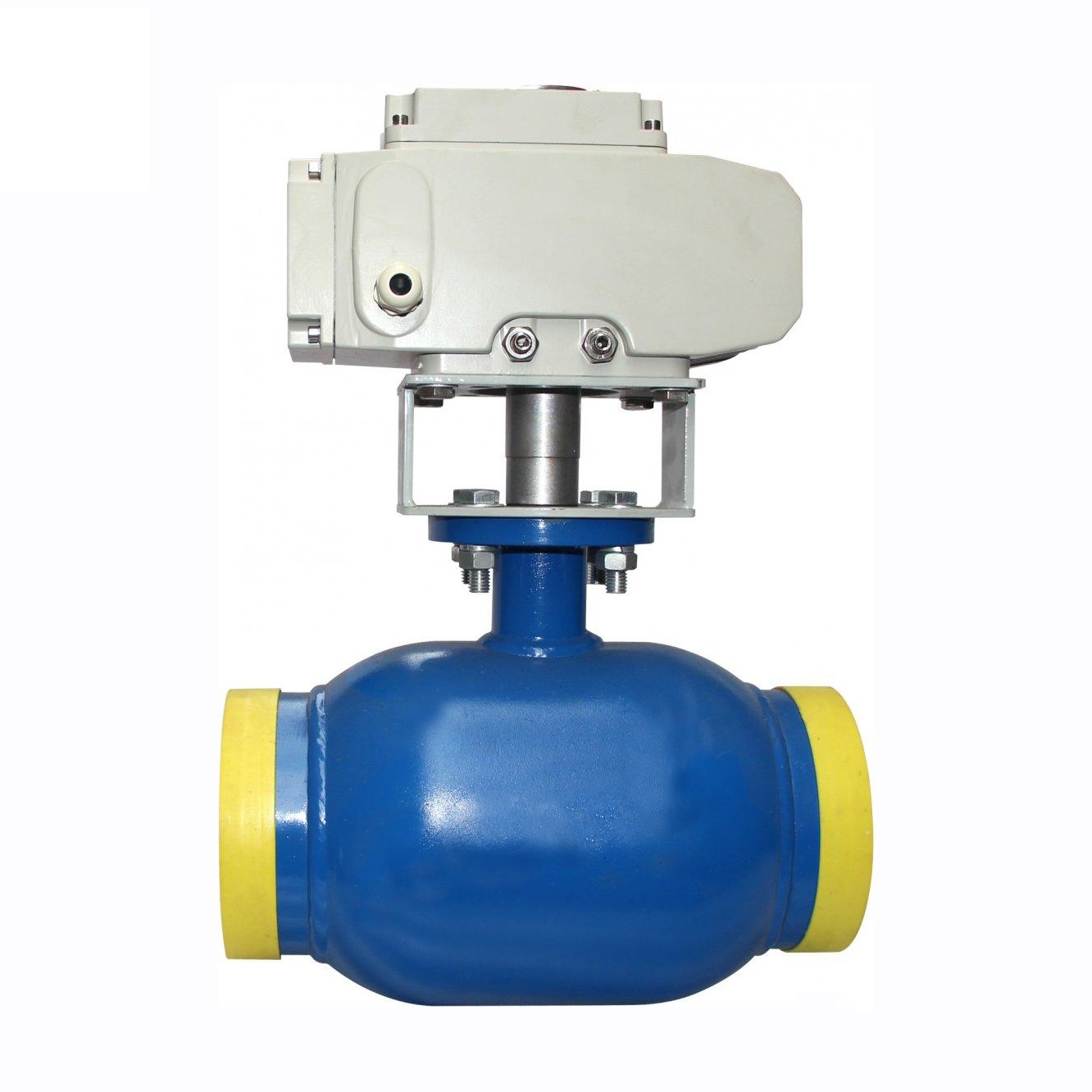

Kinko Motorized Ball Valve – Key Specifications
| Parameter | Specification |
|---|---|
| Valve size | 1/2" – 6" (DN15 – DN150) |
| Valve material | Brass, SS304, SS316L |
| Pressure rating | Class 150 – Class 600 |
| Actuator voltage | 24VAC/VDC, 110VAC, 220VAC |
| Control type | On-off (3-wire) or modulating (4-20mA/0-10V) |
| Feedback – standard | Visual + limit switches (open/closed dry contacts) |
| Feedback – optional | 4-20mA, 0-10V, potentiometer, Modbus RTU |
| Running time (90°) | 5 – 30 seconds (by size) |
| Enclosure rating | IP67 (standard), IP68 (optional) |
| Ambient temperature | -20°C to +70°C |
| Manual override | Hand crank or hex key (standard) |
Application-Specific Recommendations
| Application | Recommended Feedback |
|---|---|
| Water treatment (filter backwash) | Limit switches + 4-20mA |
| Chemical dosing | 4-20mA transmitter |
| HVAC isolation (on-off only) | Limit switches |
| Remote oil/gas wellhead | Modbus RTU |
| Food processing CIP | 4-20mA + limit switches |
| Building fire protection | Limit switches (dry contacts) |
Fail-Safe Options
| Type | Behavior on Power Loss | Best For |
|---|---|---|
| Fail-last (standard) | Remains in position | General use |
| Fail-open (spring return) | Valve opens | Cooling water, emergency vent |
| Fail-closed (spring return) | Valve closes | Chemical isolation |
| Battery backup | One cycle after power loss | High torque, high cycle |
Common Mistakes to Avoid
| Mistake | Consequence | Correct Action |
|---|---|---|
| No feedback on critical valves | Unknown status during upset | Always add feedback |
| 0-10V over long distance (>50m) | Signal drift | Use 4-20mA |
| Signal type mismatch | Incompatible with PLC | Check PLC I/O before ordering |
| Ignoring duty cycle | Actuator overheating | Specify continuous duty for modulating |
| No manual override | Cannot operate without power | Always specify hand crank |
Kinko Ordering Checklist
When requesting a quote, provide:
Valve size & material
Port type (full or reduced)
End connections
Actuator voltage
Control type (on-off or modulating)
Feedback type (limit switches / 4-20mA / 0-10V / Modbus)
Fail-safe requirement (if any)
Enclosure rating (IP67 / IP68)
Ambient temperature
