Why Butterfly Valves Are Lightweight and Cost-Effective: Weight Comparison and Total Cost Analysis
Butterfly valves have become the default choice for large-diameter piping not by accident. Their lightweight design and cost advantages over gate, globe, and ball valves directly impact installation labor, structural support requirements, and total project budget.
This guide provides direct weight comparisons and cost breakdowns.
Weight Comparison: Butterfly vs. Other Valve Types
A butterfly valve weighs 70-90% less than a comparable gate or ball valve.
| Valve Size (DN) | Butterfly Valve (Wafer) | Gate Valve | Ball Valve | Weight Savings |
|---|---|---|---|---|
| DN80 (3") | 5 kg | 15 kg | 12 kg | 65-70% |
| DN150 (6") | 18 kg | 55 kg | 45 kg | 67-70% |
| DN200 (8") | 32 kg | 95 kg | 85 kg | 66-70% |
| DN300 (12") | 65 kg | 210 kg | 180 kg | 65-70% |
| DN400 (16") | 115 kg | 380 kg | 320 kg | 70-70% |
| DN500 (20") | 180 kg | 600 kg | 550 kg | 70-68% |
| DN600 (24") | 260 kg | 900 kg | 800 kg | 71-68% |
Real-World Impact: A single DN300 butterfly valve is 145 kg lighter than a gate valve. Over 100 valves, that is 14.5 tons less weight on pipe racks.

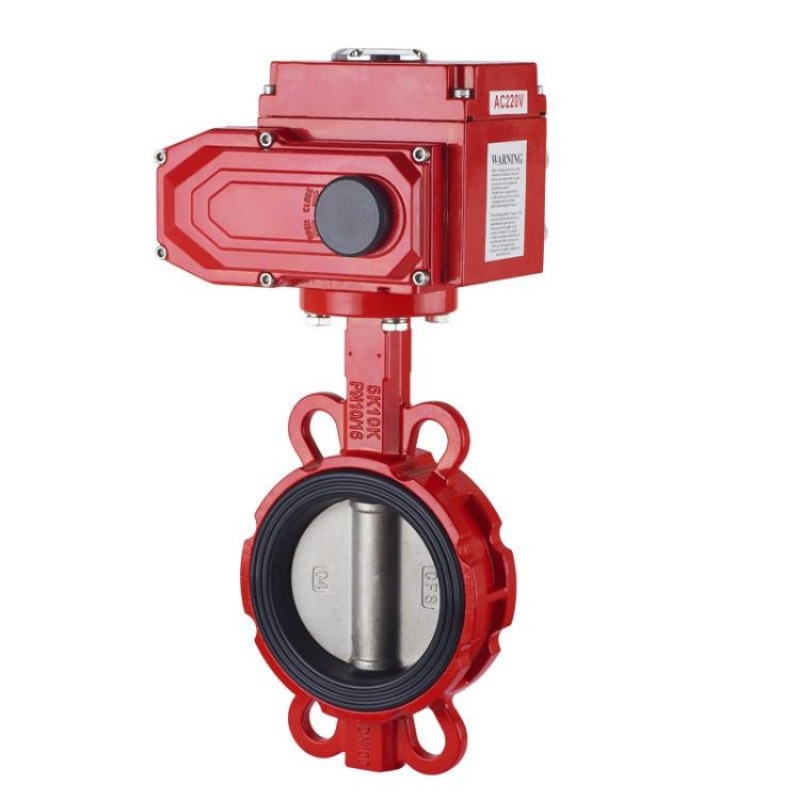

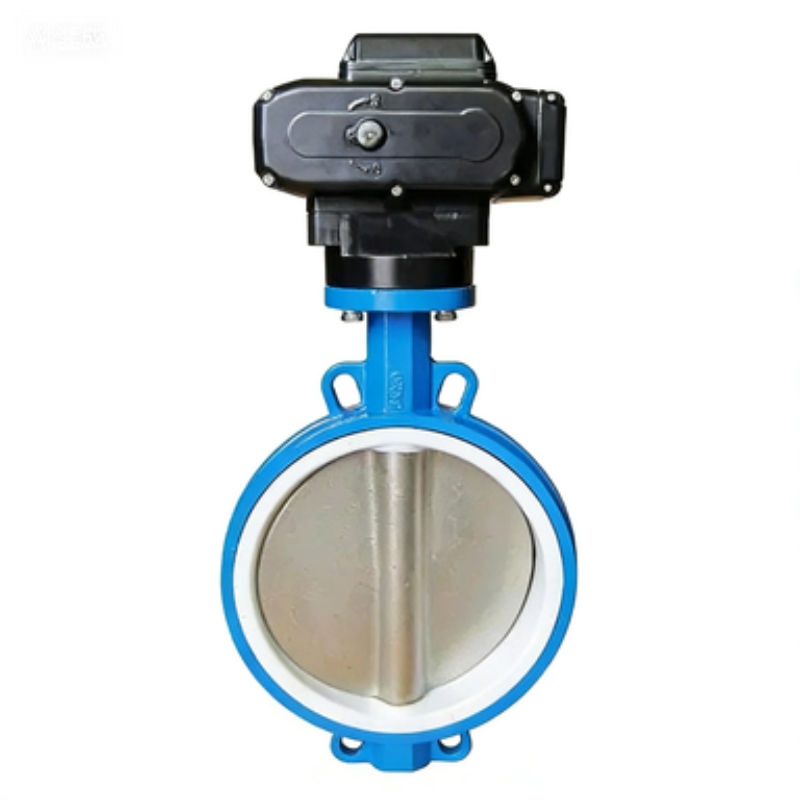

Why Butterfly Valves Are Lightweight
| Design Feature | Weight Reduction Mechanism |
|---|---|
| Wafer-style body | No heavy flanges; fits between pipe flanges |
| Thin disc profile | Minimal material compared to gate or ball |
| Short face-to-face length | 1/4 to 1/3 the length of gate valves |
| No rising stem | Eliminates heavy yoke and long stem assembly |
| Compact actuator mounting | Direct-mount without heavy brackets |
Face-to-Face Length Comparison (DN200)
| Valve Type | Length (mm) | Relative Size |
|---|---|---|
| Butterfly (wafer) | 60 mm | 1x |
| Gate valve | 280 mm | 4.7x |
| Ball valve | 340 mm | 5.7x |
| Globe valve | 400 mm | 6.7x |
Cost Breakdown: Purchase Price
Butterfly valves cost significantly less at the same size and material grade.
| Size | Valve Type | Material | Typical Price Range | Cost Difference |
|---|---|---|---|---|
| DN100 | Butterfly | Ductile iron/EPDM | 80–150 | Baseline |
| DN100 | Gate valve | Ductile iron | 250–450 | 3x more |
| DN100 | Ball valve | Carbon steel | 300–600 | 4x more |
| DN300 | Butterfly | Ductile iron/EPDM | 450–800 | Baseline |
| DN300 | Gate valve | Ductile iron | 1,800–3,000 | 4x more |
| DN300 | Ball valve | Carbon steel | 2,500–5,000 | 5-6x more |
Total Installed Cost Comparison
Purchase price is only the beginning. Installation costs favor butterfly valves significantly.
| Cost Factor | Butterfly Valve | Gate / Ball Valve |
|---|---|---|
| Unit price (DN300) | $600 | $2,500 |
| Shipping cost (by weight) | Low | 3-4x higher |
| Lifting equipment required | No (manual lift) | Yes (crane/forklift for DN200+) |
| Installation labor hours | 1-2 hours | 3-5 hours |
| Pipe support requirements | Standard | Reinforced (due to weight) |
| Actuator size (torque requirement) | Smaller | Larger (ball valves need high torque) |
| Spare parts cost | Lower | Higher |
Estimated Total Installed Cost (DN300, fully installed)
| Cost Component | Butterfly | Gate Valve |
|---|---|---|
| Valve purchase | $600 | $2,500 |
| Shipping | $50 | $200 |
| Installation labor (2 hrs vs 4 hrs) | $150 | $300 |
| Pipe support reinforcement | $0 | $200 |
| Total installed | $800 | $3,200 |
Savings: Butterfly valve saves 2,400perDN300installation.For50valves,thatis120,000.
Long-Term Cost Advantages
| Cost Factor | Butterfly Valve | Gate / Ball Valve |
|---|---|---|
| Maintenance frequency | Low (simple design) | Moderate (packing, seals) |
| Repair cost | Replace seat ($20-50) | Replace entire valve or grind seat |
| Removal for service | Easy (loosen flange bolts) | Heavy; may need pipe realignment |
| Actuator replacement cost | Lower torque → smaller actuator | Higher torque → larger actuator |
| Typical service life (water) | 10-15 years | 15-20 years |
Weight-to-Cost Summary Table
| Size | Butterfly Weight | Butterfly Cost (est.) | Gate Weight | Gate Cost (est.) | Weight Savings | Cost Savings |
|---|---|---|---|---|---|---|
| DN80 | 5 kg | $60 | 15 kg | $180 | 67% | 67% |
| DN150 | 18 kg | $150 | 55 kg | $450 | 67% | 67% |
| DN300 | 65 kg | $600 | 210 kg | $2,500 | 69% | 76% |
| DN500 | 180 kg | $1,800 | 600 kg | $7,000 | 70% | 74% |
When Butterfly Valves Are the Clear Choice
| Application | Why Butterfly is Best |
|---|---|
| Large diameter piping (DN100+) | Weight and cost savings multiply with size |
| Overhead pipe racks | Low weight reduces structural steel |
| Retrofits / existing tight spaces | Short face-to-face length fits anywhere |
| Projects with crane access limits | Can be lifted manually |
| Budget-conscious projects | Lowest total installed cost |
| High cycle / automated applications | Lower actuator torque = lower cost |
Limitations (When NOT to Choose Butterfly)
| Limitation | Better Alternative |
|---|---|
| Slurry with large solids | Full-port ball valve or knife gate |
| Vacuum service (high vacuum) | Gate valve or lined ball valve |
| Frequent dead-end service | Lug butterfly or gate valve |
| Extreme high temperature (>450°C) | Metal-seated gate or globe valve |
| Need for pigging (pipeline cleaning) | Full-bore ball valve |
Summary
Butterfly valves offer the best weight-to-cost ratio of any industrial valve type.
| Key Metric | Butterfly Advantage |
|---|---|
| Weight reduction | 65-70% lighter than gate/ball valves |
| Purchase price | 60-75% lower at DN200+ |
| Face-to-face length | 4-6x shorter |
| Total installed cost | 50-75% lower |
| Actuator cost | Smaller, less expensive |
