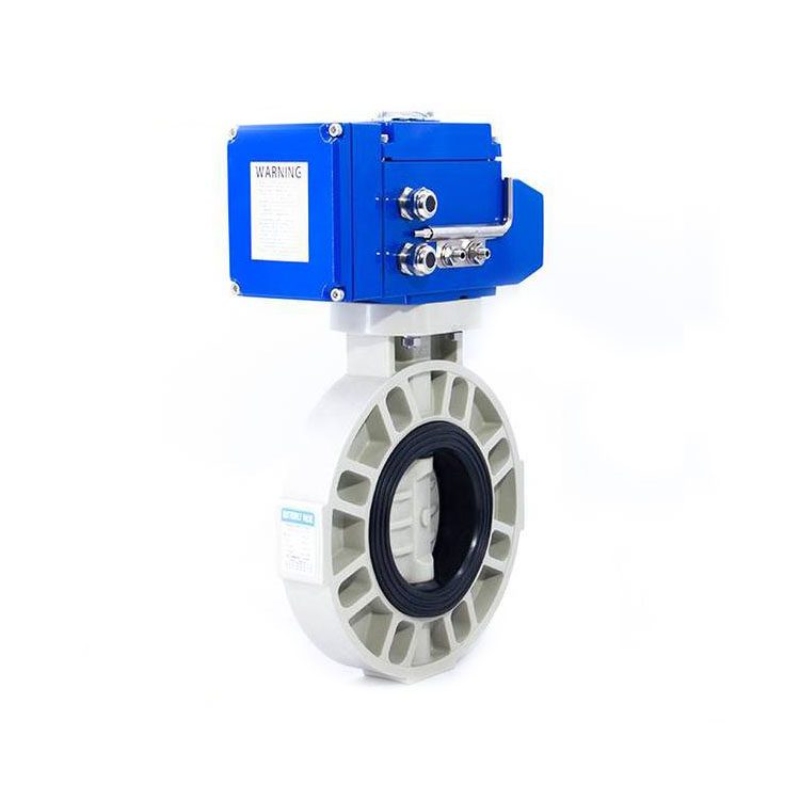

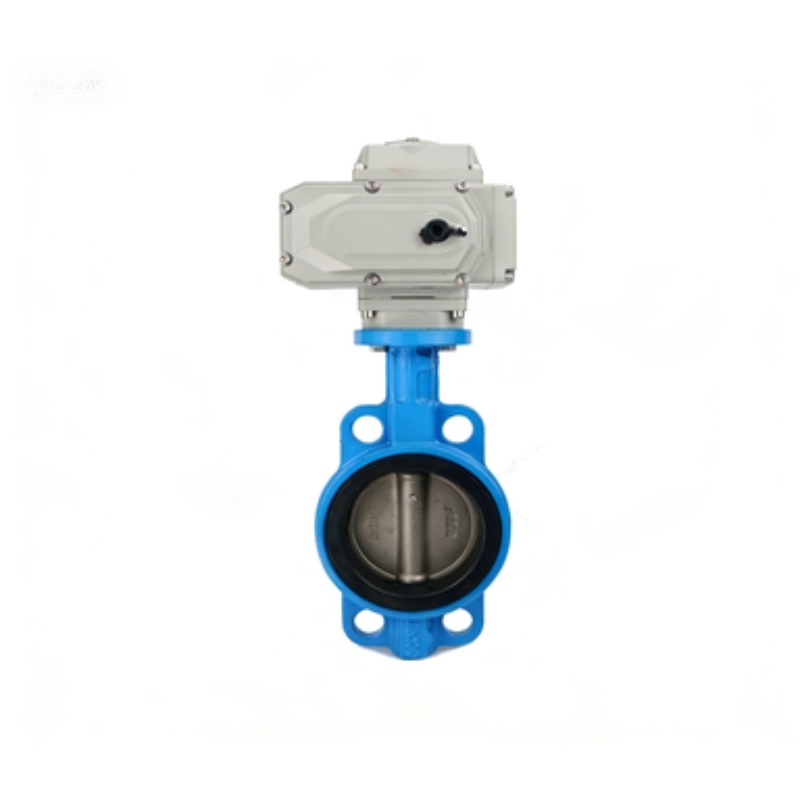

How to Size a Butterfly Valve for Flow Control: Cv, Pressure Drop, and Selection Tables
Undersized valves cause pressure drop and cavitation. Oversized valves cause poor control and hunting. Proper sizing ensures efficient operation and accurate flow modulation.
This guide provides Cv values, pressure drop calculations, and step-by-step sizing tables.
Step 1: Understand Flow Coefficient (Cv)
Cv is the number of US gallons of water at 60°F that passes through a valve with a 1 PSI pressure drop.
| Rule of Thumb | Value |
|---|---|
| Desired pressure drop (modulating service) | 0.5 – 2 PSI |
| Minimum Cv for a given flow | Higher Cv = Lower pressure drop |
| Oversized valve symptom | Hunting (unstable control) |
| Undersized valve symptom | Cavitation noise, insufficient flow |
Step 2: Calculate Required Cv
Formula:
Required Cv = Flow (GPM) x √ (SG / ΔP)
Where:
GPM = Flow rate (gallons per minute)
SG = Specific gravity (water = 1.0)
ΔP = Desired pressure drop (PSI)
Quick example: For 500 GPM water, targeting 1 PSI drop
Cv = 500 x √ (1 / 1) = 500
Select a valve with Cv slightly above 500 (approximately DN150).
Step 3: Match Valve Size to Required Cv
Typical Cv values for butterfly valves (fully open, 90°):
| Valve Size (DN) | Inches | Max Cv (Water) | Recommended Max Flow (GPM at 1 PSI drop) |
|---|---|---|---|
| DN40 | 1.5" | 45 | 45 GPM |
| DN50 | 2" | 110 | 110 GPM |
| DN65 | 2.5" | 180 | 180 GPM |
| DN80 | 3" | 280 | 280 GPM |
| DN100 | 4" | 450 | 450 GPM |
| DN125 | 5" | 700 | 700 GPM |
| DN150 | 6" | 1,100 | 1,100 GPM |
| DN200 | 8" | 2,100 | 2,100 GPM |
| DN250 | 10" | 3,600 | 3,600 GPM |
| DN300 | 12" | 5,000 | 5,000 GPM |
| DN350 | 14" | 7,000 | 7,000 GPM |
| DN400 | 16" | 9,500 | 9,500 GPM |
| DN500 | 20" | 15,000 | 15,000 GPM |
Selection rule: Choose the smallest valve that meets or slightly exceeds your required Cv.
Step 4: Calculate Pressure Drop for Existing Valve
Formula:
ΔP = (Flow GPM / Valve Cv)² x SG
Example: DN150 valve (Cv=1,100), 800 GPM water
ΔP = (800 / 1,100)² x 1 = (0.727)² = 0.53 PSI
This falls within the ideal 0.5-2 PSI range.
Step 5: Account for Disc Angle (Modulating Service)
Butterfly valves are nonlinear. Flow changes slowly at low angles, rapidly near 90°.
| Disc Opening Angle | % of Full Cv | Typical Application |
|---|---|---|
| 90° (fully open) | 100% | On/off service, isolation |
| 70° | 65% | Near full flow |
| 60° | 45% | Modulating range upper limit |
| 50° | 28% | Good control point |
| 40° | 15% | Modulating range lower limit |
| 30° | 7% | Poor control (avoid) |
| 20° | 3% | Unstable, not recommended |
| 10° | 0.5% | Seat protection only |
Recommended modulating range: 30° to 70° (7% to 65% of Cv)
Step 6: Avoid Oversizing – The Hunting Problem
An oversized valve operates at 10-20% open during normal conditions, leading to instability.
| Operating Point | Problem | Solution |
|---|---|---|
| <15° open | Disc edge turbulence, cavitation | Downsize valve |
| 15°-30° open | Sensitive response, hunting | Consider smaller valve or characterize disc |
| 30°-70° open | Ideal control range | Correct sizing |
| >70° open | Minimal flow change per degree | Acceptable for near-full flow |
Quick check: If normal operating angle is <30°, the valve is likely oversized.
Step 7: Sizing for Gases and Steam
For compressible media, use pressure ratio instead of simple Cv.
| Media | Sizing Consideration | Pressure Drop Limit |
|---|---|---|
| Compressed air | Limit velocity to avoid noise | ΔP < 0.5 x inlet pressure (absolute) |
| Steam | Use steam-specific Cv formula | ΔP < 0.42 x inlet pressure (critical flow) |
| Natural gas | Account for specific gravity | ΔP < 0.5 x inlet pressure |
Gas flow quick formula (approximate):
Cv = Gas flow (SCFM) / (Inlet pressure PSIA x 1.2)
Step 8: Sizing Tables by HVAC Application
| HVAC Component | Typical Flow Range | Recommended Valve Size | Expected ΔP |
|---|---|---|---|
| AHU coil (10 ton) | 20 GPM | DN40-DN50 | 0.5-1.5 PSI |
| AHU coil (50 ton) | 100 GPM | DN80 | 0.5-1.0 PSI |
| AHU coil (200 ton) | 400 GPM | DN150 | 0.5-1.0 PSI |
| Chiller evaporator | 600 GPM | DN200 | 0.8-1.5 PSI |
| Cooling tower cell | 1,000 GPM | DN250 | 0.5-1.0 PSI |
| Primary pump discharge | 2,000 GPM | DN350 | 0.3-0.8 PSI |
Step 9: Sizing for Pressure Drop vs. System Curve
The valve should create 50-70% of the total circuit pressure drop at full flow for stable control.
| System Type | Valve ΔP as % of Total Circuit ΔP |
|---|---|
| Variable flow (coil control) | 60-80% |
| Constant flow (bypass) | 30-50% |
| Pump discharge (isolation only) | Not applicable (on/off) |
Example system:
Coil pressure drop = 4 PSI
Piping loss = 2 PSI
Valve target ΔP = 6-8 PSI (to be 60-70% of total)
Step 10: Quick Sizing Reference Table
| Desired Flow (GPM) | Target ΔP (PSI) | Required Cv | Recommended DN |
|---|---|---|---|
| 50 | 1 | 50 | DN50 |
| 100 | 1 | 100 | DN65 |
| 200 | 1 | 200 | DN80 |
| 400 | 1 | 400 | DN125 |
| 600 | 1 | 600 | DN150 |
| 1,000 | 1 | 1,000 | DN200 |
| 2,000 | 1 | 2,000 | DN250 |
| 4,000 | 1 | 4,000 | DN350 |
| 6,000 | 1 | 6,000 | DN400 |
Common Sizing Mistakes
| Mistake | Consequence | Correction |
|---|---|---|
| Sizing valve to pipe size | Valve operates <20° open | Size to Cv, not pipe diameter |
| Ignoring modulating range | Poor control at low load | Check angle at min flow |
| Using full-open Cv for modulating valve | Underestimates ΔP at design point | Use 70° open Cv (~65% of max) |
| No safety factor | Valve undersized at peak flow | Add 15-20% margin |
| Same size for steam and water | Steam needs larger Cv | Recalculate with gas formula |
