Butterfly Valves vs Ball Valves: Weight, Cost, Performance, and Application Comparison
Butterfly valves and ball valves are the two most common quarter-turn valves. Butterfly valves excel in large diameters and low-cost applications. Ball valves provide superior shut-off and higher pressure ratings.
This guide compares both across key metrics.
Quick Comparison Overview
| Criterion | Butterfly Valve | Ball Valve |
|---|---|---|
| Weight | Light | Heavy (2-4x heavier) |
| Face-to-face length | Short | Long (3-5x longer) |
| Upfront cost (DN100+) | Lower | Higher (2-5x) |
| Pressure rating | PN10-PN25 | PN40-PN100+ |
| Temperature range | -40°C to +800°C (seal dependent) | -40°C to +250°C (standard) |
| Shut-off leakage | Class IV-VI (metal seated) | Class VI (zero leakage) |
| Flow restriction | Disc in flow path | Full bore = no restriction |
| Maintenance | Low (replace seat) | Moderate (seals, packing) |
| Best size range | DN50 – DN600+ | DN10 – DN300 |
Weight Comparison (Same Size, Same Pressure Rating)
| Size | Butterfly Valve | Ball Valve | Butterfly Advantage |
|---|---|---|---|
| DN50 | 3 kg | 8 kg | 63% lighter |
| DN80 | 5 kg | 15 kg | 67% lighter |
| DN100 | 12 kg | 28 kg | 57% lighter |
| DN150 | 18 kg | 45 kg | 60% lighter |
| DN200 | 32 kg | 85 kg | 62% lighter |
| DN300 | 65 kg | 180 kg | 64% lighter |

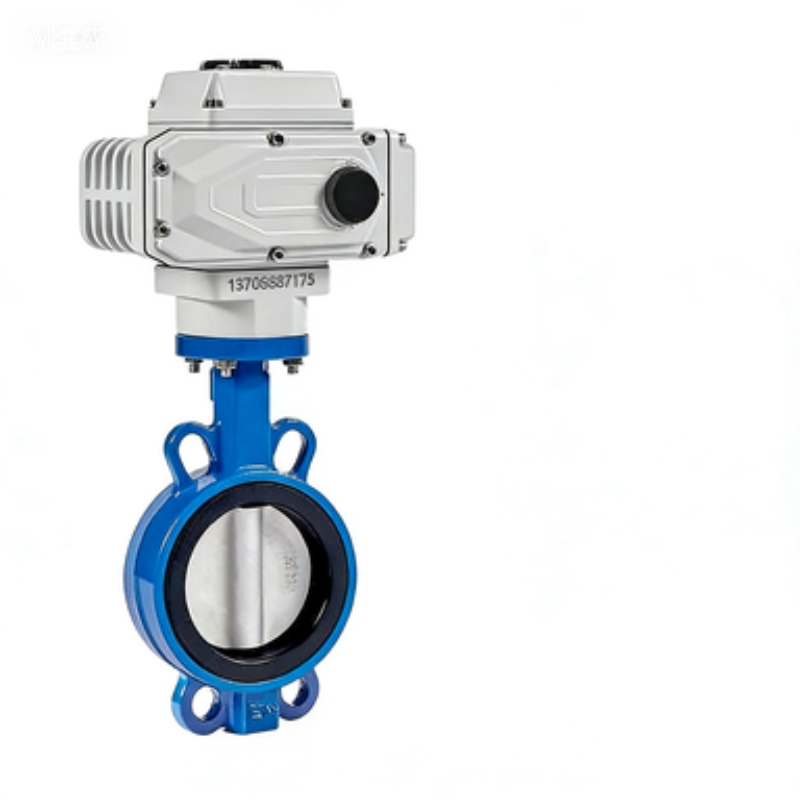

Face-to-Face Length Comparison
| Size | Butterfly (Wafer) | Ball Valve (Flanged) | Butterfly Advantage |
|---|---|---|---|
| DN50 | 43 mm | 180 mm | 76% shorter |
| DN100 | 54 mm | 230 mm | 77% shorter |
| DN150 | 57 mm | 290 mm | 80% shorter |
| DN200 | 62 mm | 350 mm | 82% shorter |
| DN300 | 78 mm | 480 mm | 84% shorter |
Cost Comparison (Ductile Iron/CS, PN16)
| Size | Butterfly Valve | Ball Valve | Butterfly Savings |
|---|---|---|---|
| DN50 | $45 | $80 | 44% |
| DN80 | $65 | $150 | 57% |
| DN100 | $85 | $250 | 66% |
| DN150 | $150 | $450 | 67% |
| DN200 | $280 | $800 | 65% |
| DN300 | $550 | $2,000 | 73% |
Note: Stainless steel ball valves cost significantly more than equivalent butterfly valves.
Pressure Rating Comparison
| Valve Type | Typical Max Pressure | Best For |
|---|---|---|
| Butterfly (wafer, rubber seat) | 16 Bar | Low to medium pressure |
| Butterfly (lug, PTFE seat) | 25 Bar | Medium pressure |
| Butterfly (metal seated) | 40 Bar | High temp, medium pressure |
| Ball valve (2-piece, floating) | 40-50 Bar | High pressure |
| Ball valve (3-piece, trunnion) | 100 Bar+ | Very high pressure |
Temperature Comparison (by Seat Material)
| Seat Material | Butterfly Max Temp | Ball Valve Max Temp |
|---|---|---|
| EPDM | 120°C | 120°C |
| Viton | 200°C | 200°C |
| PTFE | 230°C | 230°C |
| Metal seated | 650-800°C | 450-550°C |
| Graphite | 450°C | 350°C |
Butterfly advantage: Metal-seated butterfly valves handle higher temperatures than metal-seated ball valves.
Shut-off Leakage Comparison
| Valve Type | Seat Type | Leakage Rating | Typical Leak Rate |
|---|---|---|---|
| Butterfly | Soft (EPDM/Viton) | Class VI | Near zero (temporary) |
| Butterfly | PTFE | Class IV-V | 0.01-0.1% |
| Butterfly | Metal | Class III-IV | 0.1-1% |
| Ball valve | Soft (PTFE) | Class VI | Zero (bubble-tight) |
| Ball valve | Metal | Class V-VI | Very low |
Ball valve advantage: Superior long-term shut-off, especially for gas service.
Flow Characteristics
| Feature | Butterfly Valve | Ball Valve |
|---|---|---|
| Flow path | Disc in center | Full bore (no obstruction) |
| Pressure drop at full open | Low | Very low (near zero) |
| Pressure drop at 50% open | Significant | Moderate |
| Linear flow characteristic | Modified linear (disc) | Equal percentage (characterized) |
| Cavitation risk | Higher (disc edge) | Lower (smooth bore) |
| Best for modulating | Yes (disc angle) | No (poor near closed) |

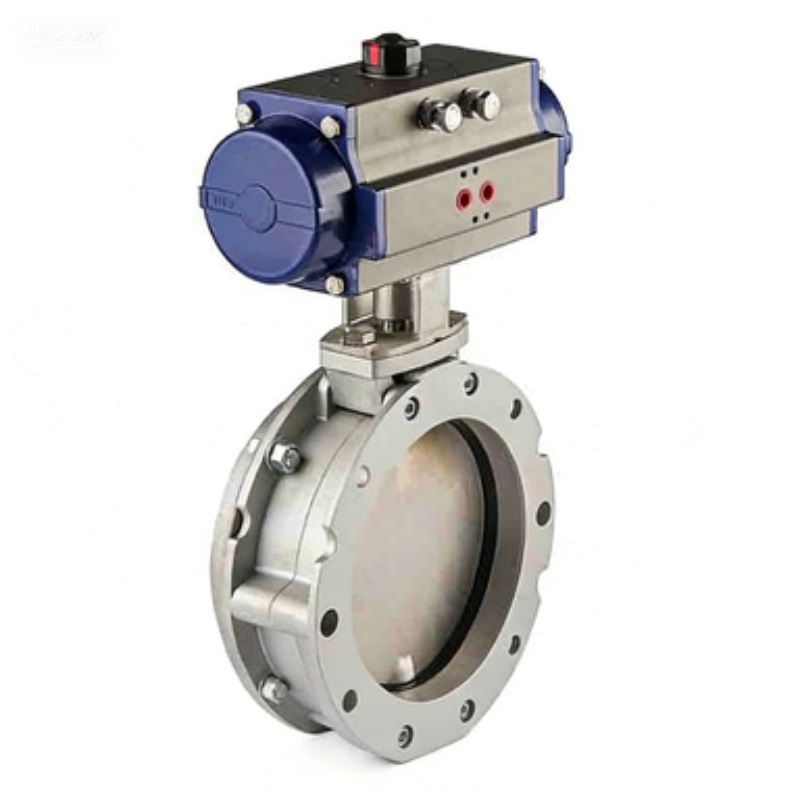

Actuator Torque Comparison (DN100)
| Valve Type | Break Torque (Nm) | Running Torque (Nm) | Actuator Size |
|---|---|---|---|
| Butterfly valve | 35 Nm | 25 Nm | Smaller |
| Ball valve (floating) | 80 Nm | 60 Nm | Larger (2-3x) |
Butterfly advantage: Smaller, cheaper actuators.
Application Selection Matrix
| Application | Butterfly | Ball Valve | Recommendation |
|---|---|---|---|
| HVAC chilled water | Yes | No | Butterfly |
| Large diameter (DN200+) | Yes | No (too heavy/costly) | Butterfly |
| High pressure (40 Bar+) | No | Yes | Ball valve |
| Gas service (tight shut-off) | No (soft seat ok) | Yes (preferred) | Ball valve |
| Slurry / solids | No (disc traps debris) | No (full bore better) | Knife gate or full-port ball |
| Steam (high temp) | Yes (metal seated) | Limited | Butterfly |
| Chemical dosing (small line) | No | Yes | Ball valve |
| Vacuum service | Limited | Yes | Ball valve |
| Pigging applications | No | Yes (full bore) | Ball valve |
| Modulating control | Yes | No | Butterfly |
| Dead-end service | Yes (lug type) | Yes | Either |
Size Range Sweet Spots
| Valve Size | Best Choice | Why |
|---|---|---|
| DN10 – DN25 | Ball valve | Butterfly not available |
| DN25 – DN50 | Either | Cost and weight similar |
| DN50 – DN150 | Either | Ball valve cost higher but acceptable |
| DN150 – DN300 | Butterfly | Ball valve too heavy and expensive |
| DN300 – DN600+ | Butterfly | Ball valve not practical |
Maintenance Comparison
| Aspect | Butterfly Valve | Ball Valve |
|---|---|---|
| Common failure point | Seat wear, stem seals | Seat wear, stem packing, ball surface |
| Repair difficulty | Easy (replace seat in place) | Moderate (remove valve or disassemble) |
| Spare part cost | Low ($20-50 for seat) | Moderate ($50-150 for seat kit) |
| Seat replacement time | 15-30 minutes | 30-60 minutes |
| Special tools required | No | Yes (for ball removal) |
| Field repairable | Yes | Yes (but more complex) |
Summary Table
| Criterion | Winner | Margin |
|---|---|---|
| Weight | Butterfly | 2-4x lighter |
| Length | Butterfly | 3-5x shorter |
| Cost (DN100+) | Butterfly | 2-4x cheaper |
| Pressure rating | Ball valve | 2-3x higher |
| Temperature (metal seat) | Butterfly | Up to 800°C vs 550°C |
| Shut-off leakage | Ball valve | True zero leakage |
| Flow restriction | Ball valve (full bore) | No obstruction |
| Modulating control | Butterfly | Disc angle control |
| Actuator cost | Butterfly | Smaller, cheaper |
| Maintenance ease | Butterfly | Simpler design |
| Solids handling | Neither | Use knife gate |
| High cycle life | Ball valve | PTFE seat lasts longer |
Quick Selection Guide
Choose Butterfly Valve when:
DN150 or larger
Budget is constrained
Weight matters (overhead piping)
Modulating control required
High temperature (metal seated)
HVAC water or air service
Choose Ball Valve when:
DN50 or smaller
High pressure required (40 Bar+)
Bubble-tight shut-off needed (gas)
Full bore flow without restriction
Frequent operation (high cycle life)
Vacuum service
Contact our team for sizing or quotes for your specific application.
