Manual vs Automated Butterfly Valves: Cost, Speed, and Application Guide
Manual valves cost less upfront. Automated valves save labor and enable remote control. The right choice depends on operation frequency, control needs, and budget.
Quick Comparison
| Criterion | Manual | Automated |
|---|---|---|
| Upfront cost | Low | High (valve + actuator) |
| Operating cost | Labor-intensive | Near zero |
| Remote control | No | Yes |
| Response speed | Slow | Fast (seconds) |
| Precision | Operator dependent | Highly repeatable |
| Best for | Infrequent use | Frequent cycling, BAS |
Cost Comparison (DN100)
| Component | Manual (Lever) | Electric | Pneumatic |
|---|---|---|---|
| Valve + operator | $100 | $265 | $235 |
| Cost multiplier | 1x | 2.65x | 2.35x |
Manual Operator Types
| Operator | Torque | Best For | Size Range |
|---|---|---|---|
| Hand lever | Low (≤60 Nm) | Small valves | DN25 – DN100 |
| Gear operator | Medium-High | Larger valves | DN125 – DN400 |
Automated Actuator Types
| Actuator | Power | Speed (90°) | Best For |
|---|---|---|---|
| Electric (On/Off) | 24V/220V | 10-60 sec | Remote open/close |
| Electric (Modulating) | 24V/220V | 30-120 sec | Precise flow control |
| Pneumatic (Double-acting) | Compressed air | 0.5-5 sec | Fast cycling |
| Pneumatic (Spring return) | Compressed air | 1-10 sec | Fail-safe required |
Response Speed
| Type | Open-to-Close | Cycle Limit |
|---|---|---|
| Manual lever | 5-10 sec | Human limited |
| Manual gearbox | 15-60 sec | Human limited |
| Electric | 10-60 sec | 10-20/hr |
| Pneumatic | 0.5-5 sec | 60-120/min |
Application Selection
| Application | Manual | Electric | Pneumatic |
|---|---|---|---|
| Seasonal isolation | Yes | No | No |
| Daily operation | No | Yes | Optional |
| BAS integration | No | Yes | Yes |
| Emergency shutdown | No | No | Yes (fail-safe) |
| Explosive area | Yes (non-sparking) | No | Yes |
| High cycle (100+/day) | No | No | Yes |
| Large valve (DN400+) | No | Yes | Yes |
Total Cost of Ownership (5 Years – DN150, 2 operations/day)
| Cost | Manual | Electric | Pneumatic |
|---|---|---|---|
| Purchase + install | $200 | $600 | $580 |
| Labor (5 years) | $5,000 | $0 | $0 |
| Maintenance | $30 | $120 | $150 |
| Total | $5,230 | $720 | $730 |
Key insight: Automated pays for itself in labor savings within 1-2 years for daily operation.
Quick Decision Guide
| Scenario | Recommendation |
|---|---|
| Rare operation (weekly or less) | Manual lever |
| Large valve, rare operation | Manual gearbox |
| Daily operation, BAS connected | Electric modulating |
| Fast cycling (10+ cycles/hour) | Pneumatic |
| Fail-safe required | Pneumatic spring return |
| Explosive environment | Pneumatic or manual |
| No power at site | Manual or pneumatic |
| Tight budget, frequent use | Electric on/off |
Hybrid Options
| Solution | Best For |
|---|---|
| Manual valve with ISO mounting pad | Add actuator later |

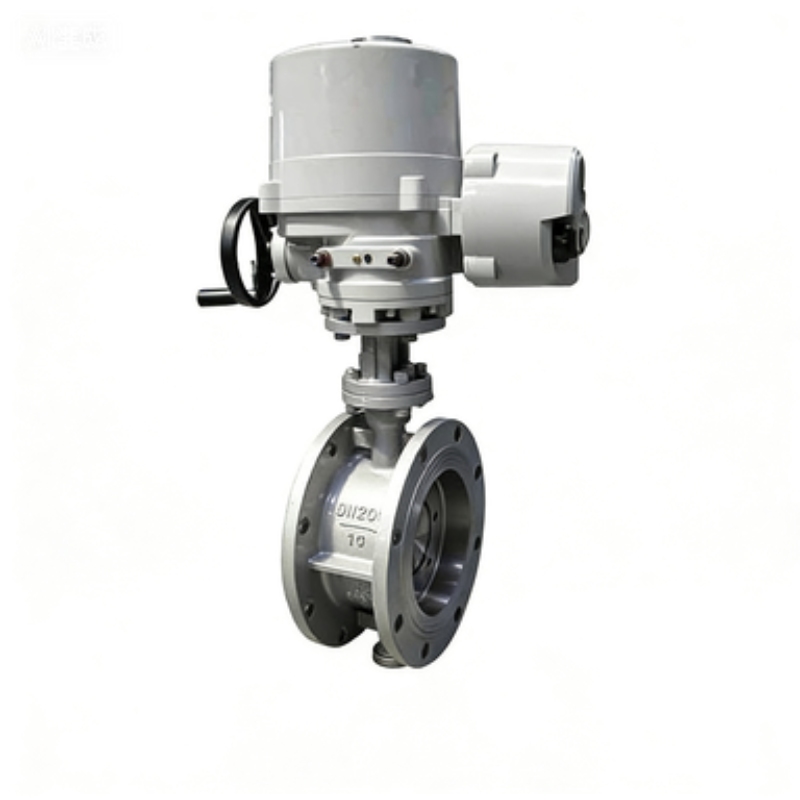

| Electric with manual override | Automated + emergency backup |
| Pneumatic with manual lever | Fail-safe + local control |
Summary
| Factor | Winner |
|---|---|
| Lowest upfront cost | Manual |
| Lowest 5-year cost (frequent use) | Automated |
| Fastest response | Pneumatic |
| Best precision | Automated (modulating) |
| Best for hazardous areas | Pneumatic |
| Best for no power | Manual |
Choose manual: Infrequent operation, tight budget, no power available.
Choose automated: Daily operation, BAS integration, remote control needed, fail-safe required.
Contact our team for actuator sizing or valve + actuator package quotes.
