Explosion-Proof Butterfly Valves for Hazardous Areas: Ratings, Actuators, and Selection Guide

Standard electric actuators can ignite flammable gases, vapors, or dust. In hazardous areas, explosion-proof butterfly valves are required by law. These valves use specially sealed actuators and anti-static components to prevent ignition.

This guide covers explosion-proof ratings, actuator types, and selection for hazardous locations.

What Makes a Valve Explosion-Proof?

Feature	Purpose
Explosion-proof enclosure	Contains internal explosion without propagating
Flame path (flame arrestor)	Cools escaping gases to below ignition temp
Anti-static device	Grounds disc and stem to prevent spark
Sealed wiring entry	Prevents gas ingress
Temperature class rating	Surface temp below auto-ignition of surrounding gas

Important: Explosion-proof does not mean ignition-proof. The enclosure contains the explosion internally.

Hazardous Area Classification (International)

Zone (IEC)	Division (NEC)	Definition
Zone 0	Division 1	Explosive atmosphere present continuously
Zone 1	Division 1	Likely to occur in normal operation
Zone 2	Division 2	Unlikely to occur, short duration if occurs
Zone 20	Division 1	Combustible dust present continuously
Zone 21	Division 1	Dust likely in normal operation
Zone 22	Division 2	Dust unlikely, short if occurs

Butterfly valve actuators typically rated for: Zone 1 / Zone 2 (gas) and Zone 21 / Zone 22 (dust).

Explosion-Proof Ratings Comparison

Standard	Region	Typical Rating	Description
ATEX	Europe	II 2 G Ex db IIB T4	Flameproof enclosure
IECEx	International	Ex db IIB T4 Gb	Flameproof, high protection
NEC / CEC	North America	Class I Div 1 Groups C,D	Gas/vapor groups
NEC / CEC	North America	Class II Div 1 Groups F,G	Combustible dust
CCC Ex	China	Ex d IIB T4	Flameproof (China mandatory)

Gas Groups (IEC / ATEX)

Group	Representative Gas	Required Protection
IIA	Propane, methane	Standard flameproof
IIB	Ethylene, typical industrial gases	Most common
IIC	Hydrogen, acetylene	Highest protection (rare for valves)

Most butterfly valve actuators: IIB rating (covers 95% of hydrocarbon and chemical applications).

Temperature Classes (T-Ratings)

T-Class	Max Surface Temp	Suitable For
T1	450°C	Most gases
T2	300°C	Most gases (excl. some solvents)
T3	200°C	Common for electric actuators
T4	135°C	Typical for pneumatic actuators
T5	100°C	Sensitive chemicals
T6	85°C	Very sensitive (rare)

Typical actuator T-rating: T4 (135°C) for electric, T4-T6 for pneumatic (lower heat output).

Explosion-Proof vs Purged Enclosures

Feature	Explosion-Proof (Ex d)	Purged (Ex p)
Mechanism	Contains explosion	Prevents gas entry with positive pressure
Installation complexity	Simple (direct mount)	Complex (requires clean air supply)
Cost	Higher	Lower (actuator itself not Ex-rated)
Maintenance	Low (sealed)	High (filter, pressure monitoring)
Best for	Small to medium valves	Large valves, existing standard actuators

Actuator Options for Hazardous Areas

Actuator Type	Explosion-Proof Rating	Best Application
Pneumatic (standard)	None (intrinsically safe if no spark)	Most hazardous areas (preferred)
Pneumatic (Ex-rated solenoid)	Ex d / Ex mb	When solenoid required on valve
Electric (Ex d flameproof)	Ex d IIB T4	Remote operation, BAS integration
Electric (Ex e increased safety)	Ex e	Less hazardous (Zone 2 only)
Manual (hand lever/gearbox)	No rating required	No electrical components

Pneumatic advantage: No electrical arcing. Often accepted without Ex rating (check local code).

Anti-Static Requirement

Component	Anti-Static Feature	Why Needed
Disc to stem	Continuous contact (no insulation)	Prevents static buildup
Stem to body	Grounding spring or direct contact	Discharges static to pipe
Body to pipe	Metal-to-metal contact through flanges	Ground path to earth
Actuator	Conductive coating or grounding lug	Prevents external spark

Verification: Measure resistance from disc to ground – should be <10 ohms.

Selection Matrix by Hazardous Area

Hazardous Area	Recommended Actuator	Required Rating
Zone 1 / Division 1 (gas)	Pneumatic (no solenoid)	No Ex rating needed (check code)
Zone 1 / Division 1 (gas) with automation	Electric Ex d flameproof	Ex d IIB T4
Zone 2 / Division 2 (gas)	Electric Ex e or Ex nA	Ex e IIB T4
Zone 21 / Division 1 (dust)	Pneumatic or Ex tD	Ex tb IIIC
Zone 22 / Division 2 (dust)	Standard with dust-tight enclosure	IP6X
Any zone, high ambient temp	Pneumatic (preferred)	Lower heat output

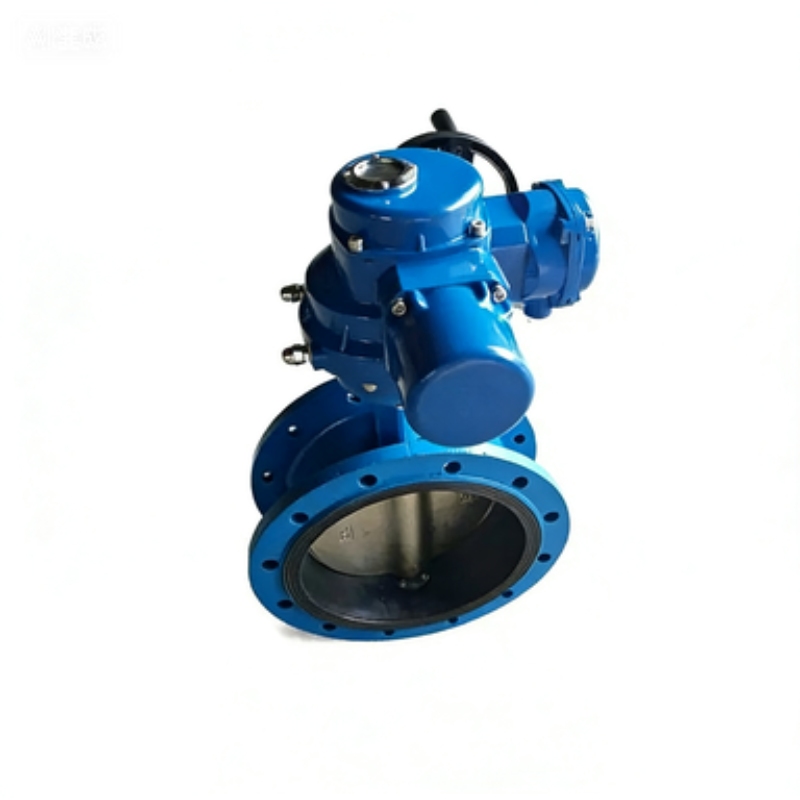

Electric Ex d Actuator Specifications

Parameter	Typical Value
Enclosure rating	IP66 / IP67 / IP68
Ex rating	Ex db IIB T4 Gb
Temperature range	-20°C to +55°C
Supply voltage	24V DC / 110V AC / 220V AC
Control signal	On/Off or 0-10V / 4-20mA
Cable entry	2 x M20 or 1/2" NPT (Ex d certified)
Material	Aluminum or stainless steel

Pneumatic Actuator in Hazardous Areas

Feature	Standard Pneumatic	With Ex Solenoid
Ex rating required?	No (if no electrical parts)	Yes (solenoid needs Ex rating)
Solenoid mounting	Remote (safe area) or Ex-rated	Direct with Ex mb / Ex d
Position feedback	Mechanical limit switches (Ex rated)	Inductive (Ex rated required)
Tubing	Conductive or anti-static	Standard acceptable
Best practice	Locate solenoid/valve in safe area	Use pneumatic signal to actuator

Recommendation: Use pneumatic actuators with solenoid valves located in non-hazardous areas (up to 100m away).

Installation Requirements (Ex d Electric Actuator)

Requirement	Detail
Cable glands	Ex d certified, correctly sized
Conduit entry	Sealed with Ex d compound
Grounding	Separate ground wire to actuator lug
Unused entries	Sealed with Ex d blanking plugs
Installation manual	Follow manufacturer's torque for flame path
Certification copy	Must remain with actuator

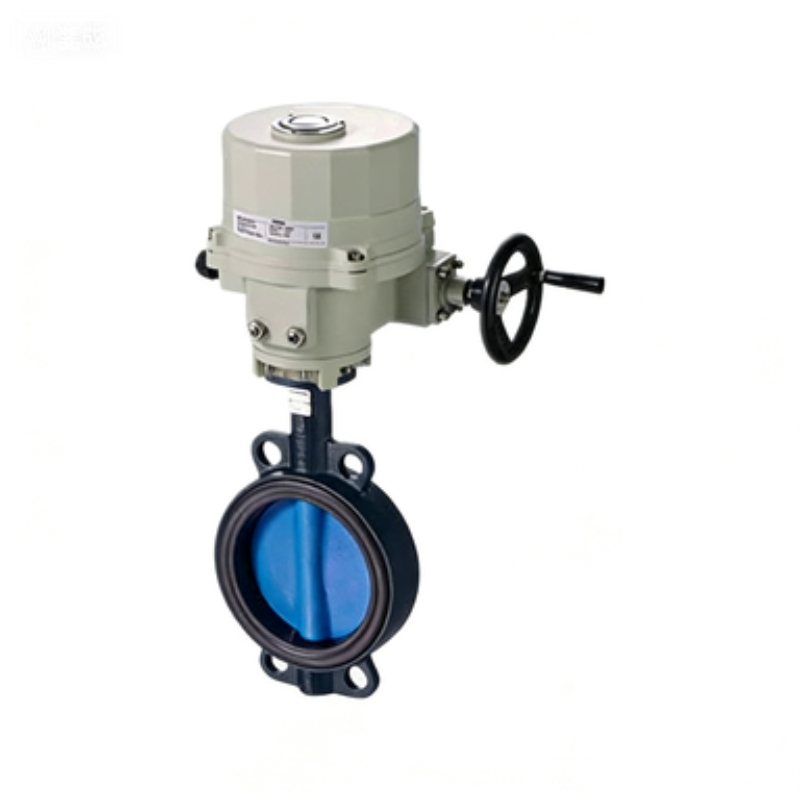

1399963104b94789835e4aaa45857547.jpeg~tplv-a9rns2rl98-downsize_watermark_1_5_b_WH_800x800px.jpg

Common Mistakes

Mistake	Consequence	Correction
Standard actuator in Zone 1	Ignition risk, code violation	Use Ex d or pneumatic
Wrong cable gland	Breaks flameproof seal	Use Ex d certified gland
No anti-static grounding	Static spark ignition	Verify disc-to-ground continuity
Missing T-rating check	Actuator surface may ignite gas	Match T-class to gas auto-ignition temp
Improper flame path torque	Enclosure fails to contain explosion	Torque to manufacturer spec

Cost Comparison (DN100, 24V Electric)

Actuator Type	Approximate Cost	Multiplier
Standard electric	$180	1x
Ex d flameproof electric	$600-$ 1,200	3-7x
Pneumatic (no Ex parts)	$150	0.8x
Pneumatic + Ex solenoid	$300	1.7x

Cost-saving tip: Use pneumatic actuators with remote solenoids in safe areas.

Application Examples

Industry	Hazard	Valve Type	Actuator
Oil refinery	Zone 1 (hydrocarbons)	Metal-seated butterfly	Pneumatic + remote solenoid
Chemical plant	Zone 1 (solvent vapors)	PTFE-lined butterfly	Ex d electric
Paint booth	Zone 2 (atomized solvents)	Stainless steel butterfly	Ex e electric
Grain silo	Zone 21 (dust)	Cast iron butterfly	Pneumatic + dust-tight cover
Gas terminal	Zone 1 (natural gas)	Fire-safe butterfly	Pneumatic with Ex solenoid
Offshore platform	Zone 1 (gas)	Duplex stainless	Ex d electric (SS enclosure)

Quick Selection Checklist

Question	Answer Required
Hazardous area classification (Zone/Division)	_____
Gas group (IIA/IIB/IIC)	_____
Required T-class	_____
Power available (pneumatic or electric)	_____
Control type (on/off or modulating)	_____
Feedback required (limit switches or positioner)	_____
Local code (ATEX, IECEx, NEC)	_____

Summary

Recommendation	Best Choice
Most cost-effective hazardous area solution	Pneumatic actuator (solenoid in safe area)
When electric is required	Ex d flameproof (IIB T4 minimum)
For dust hazards	Pneumatic + IP6X or Ex tD
For hydrogen / acetylene (IIC)	Consult specialist (rare for butterfly)
For Zone 2 only	Ex e increased safety (lower cost)

Primary rule: No standard electrical components in hazardous areas. Use pneumatic or certified Ex d electric.
