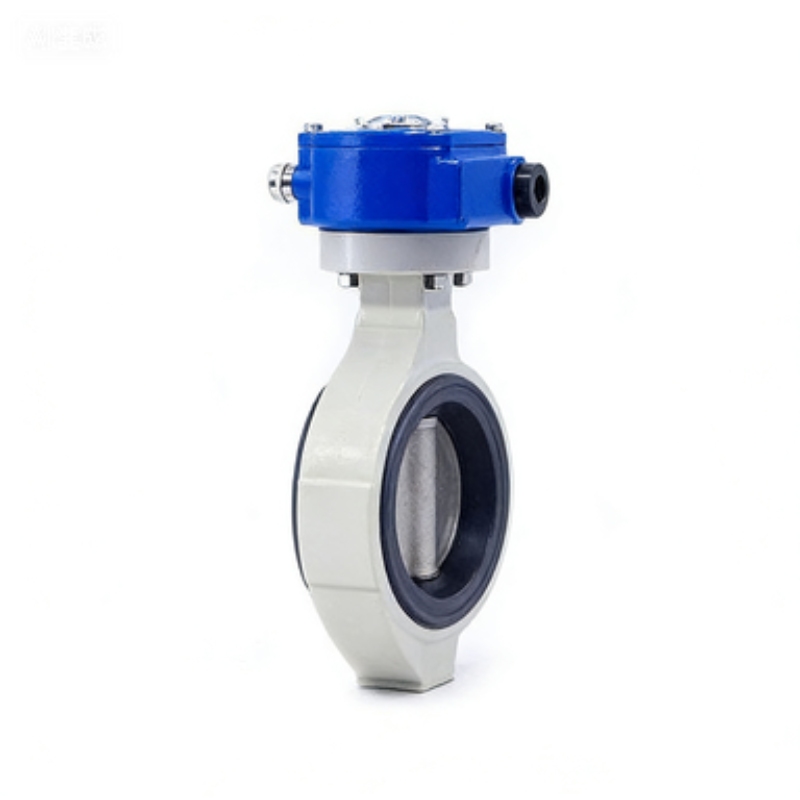

Sanitary Butterfly Valves for Food and Pharma: Standards, Materials, and Selection Guide

Standard butterfly valves cannot be used in food or pharmaceutical processing. They have cracks, crevices, and materials that harbor bacteria. Sanitary butterfly valves are designed with smooth surfaces, quick disassembly, and FDA-compliant materials.

This guide covers sanitary standards, materials, finishes, and application requirements.

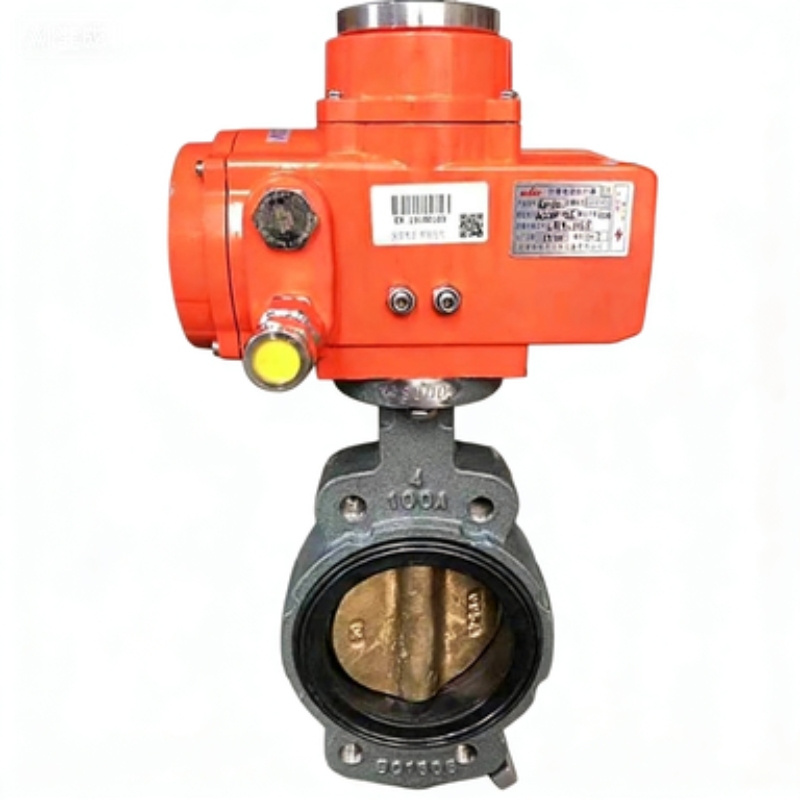

Sanitary vs Standard Butterfly Valve

Feature	Standard Valve	Sanitary Valve
Surface finish	Rough (as cast)	Polished (Ra ≤ 0.8 µm)
Internal crevices	Yes	No (fully swept bore)
Gaskets	Rubber, may leach	FDA-approved silicone/EPDM
Disassembly	Tools required	Tool-less (clamp)
Drainability	Pools fluid	Self-draining
Material certification	None	3.1/3.2 material certs
Cost	Low	High (2-4x)

Key Sanitary Standards

Standard	Region	Requirement
3-A Sanitary	USA	Dairy and food equipment design
EHEDG	Europe	Hygienic equipment design
FDA CFR 21	USA	Material compliance for food contact
USP Class VI	USA	Biocompatibility (pharma)
ASME BPE	USA	Bioprocessing equipment (pharma)

Most common combination: 3-A certified + FDA materials for food. ASME BPE + USP Class VI for pharma.

Surface Finish Requirements

Finish (Ra)	Application	Visual
Ra ≤ 0.8 µm (32 µin)	Standard sanitary (3-A)	Semi-bright
Ra ≤ 0.5 µm (20 µin)	High-purity food (dairy, beer)	Bright
Ra ≤ 0.4 µm (16 µin)	Pharmaceutical (ASME BPE SF1)	Mirror
Ra ≤ 0.25 µm (10 µin)	Biotech, injectable drugs (SF4)	High mirror
Electropolished	Pharma, reduces surface defects	Enhanced mirror

Rule of thumb: Smoother finish = easier cleaning = higher cost.

Material Requirements

Component	Food Grade	Pharma Grade
Body / Disc	SS316L (preferred)	SS316L (low carbon)
Seat	FDA EPDM / Silicone / PTFE	USP Class VI Silicone / PTFE
Stem	SS316L	SS316L electropolished
Clamps	SS304 or SS316	SS316L
Gaskets	FDA EPDM	USP Class VI EPDM

Material Certification Required

Certificate	Food	Pharma
3.1 material cert (EN 10204)	Optional	Required
3.2 material cert	Rare	Often required
Traceability to heat	No	Yes
Ferrite content test	No	Yes (for welding)
Passivation certification	No	Required

Seat Material Comparison for Sanitary

Seat Material	Max Temp	FDA	USP VI	Best For
EPDM (FDA)	120°C	Yes	No	Dairy, water, CIP
Silicone	150°C	Yes	Yes	Pharma, high temp, biotech
PTFE	230°C	Yes	Yes	Aggressive chemicals, steam
Viton	200°C	Limited	No	Oils, fats (limited food use)
BUNA-N (NBR)	90°C	Yes	No	Oils, non-dairy

Pharma preferred: Silicone (flexible, USP VI) or PTFE (chemical resistance).

End Connections

Connection Type	Standard	Disassembly	Best For
Tri-Clamp (ferrule)	3-A, ASME BPE	Tool-less (quick)	Most food and pharma
Threaded (male/female)	DIN 11851	Wrench	European dairy
Flanged (sanitary)	DIN 32676	Tools	Large diameters (DN100+)
Weld end (butt weld)	ASME BPE	Permanent	High-purity pharma

Tri-Clamp Sizes

Tube OD (inches)	DN Equivalent	Typical Use
1"	DN25	Small lines, sampling
1.5"	DN40	Common food/dairy
2"	DN50	Most common sanitary size
2.5"	DN65	Transfer lines
3"	DN80	Main product lines
4"	DN100	Bulk transfer

CIP / SIP Compatibility

Feature	CIP (Clean-in-Place)	SIP (Steam-in-Place)
Purpose	Chemical wash without disassembly	Sterilization with steam
Temperature	60-85°C	121-140°C
Seat requirement	EPDM, Silicone	Silicone, PTFE
Actuator requirement	Standard (sealed)	High-temp rated
Drainability	Self-draining required	Full drain required
Autoclave compatibility	No	Yes (SIP only)

For SIP: Silicone or PTFE seats only. EPDM degrades at 130°C+.

Actuator Requirements for Sanitary

Requirement	Food	Pharma
Enclosure rating	IP65/IP67	IP67/IP69K (high pressure washdown)
Surface finish	Smooth (no crevices)	Electropolished stainless
Washdown capable	Yes	Yes (chemical resistant coating)
Position feedback	Optional	Required (audit trail)
Material	Painted aluminum or SS	SS316 (preferred)

Pharma best practice: Stainless steel actuator with IP69K for high-pressure washdown.

Valve Sizes for Sanitary Applications

DN	Inches	Flow Rate (Water, GPM)	Typical Application
DN25	1"	25	Sampling, small ingredient lines
DN40	1.5"	75	Pilot plant, dairy processing
DN50	2"	140	Main production lines
DN65	2.5"	230	High-volume transfer
DN80	3"	350	Bulk storage transfer
DN100	4"	600	Silo discharge

Selection Matrix by Application

Application	Valve Size	Body/Disc	Seat	Connection	Finish
Dairy (milk)	DN40-80	SS316L	FDA EPDM	Tri-clamp	Ra ≤ 0.8
Beer brewing	DN50-100	SS316L	FDA EPDM / Silicone	Tri-clamp / DIN	Ra ≤ 0.5
Beverage (juice/soda)	DN50-100	SS316L	FDA EPDM	Tri-clamp	Ra ≤ 0.8
Food sauces	DN40-80	SS316L	FDA EPDM	Tri-clamp	Ra ≤ 0.8
Pharma (water for injection)	DN25-50	SS316L	USP VI Silicone	Tri-clamp / weld	Ra ≤ 0.4
Biotech (cell culture)	DN25-40	SS316L	USP VI Silicone / PTFE	Weld	Ra ≤ 0.25
Cosmetic (lotions)	DN40-80	SS316L	FDA EPDM / Silicone	Tri-clamp	Ra ≤ 0.8

Cleaning Validation (Pharma)

Requirement	Typical Spec
Surface roughness	Ra ≤ 0.4 µm (ASME BPE SF1)
No crevices	Full swept bore radius
Drain port angle	≥ 3° slope
Dead leg	Zero (valve mounted directly)
Material certification	3.2 with full traceability
Passivation	ASTM A967
Electropolishing	Optional but recommended

Common Mistakes

Mistake	Consequence	Correction
Using standard EPDM in pharma	Leachables, validation failure	Use USP Class VI silicone
Rough surface finish (as cast)	Bacteria harboring, failed swab test	Specify Ra ≤ 0.8 µm minimum
Threaded connections in pharma	Crevice corrosion, difficult cleaning	Use tri-clamp or weld
Standard painted actuator	Paint flakes contaminate product	Use stainless steel actuator
No material traceability	Audit failure, product recall risk	Require 3.1/3.2 certs

Cost Comparison (DN50, Tri-Clamp)

Component	Standard (non-sanitary)	Sanitary (Food)	Sanitary (Pharma)
Valve body	$85	$250	$450
Seat	$10 (std EPDM)	$25 (FDA EPDM)	$60 (USP Silicone)
Clamps (pair)	N/A	$30	$50 (SS)
Finish	As cast	Ra 0.8	Ra 0.4 + electropolish
Total approx	$95	$305	$560
Multiplier	1x	3.2x	5.9x

Quick Selection Checklist (Food)

Requirement	Check
3-A or EHEDG certified	☐
FDA CFR 21 material compliant	☐
SS316L body and disc	☐
Ra ≤ 0.8 µm finish	☐
Tri-clamp connections	☐
FDA EPDM or silicone seat	☐
Washdown-capable actuator	☐

Quick Selection Checklist (Pharma)

Requirement	Check
ASME BPE compliant	☐
USP Class VI seat (silicone or PTFE)	☐
SS316L with 3.2 material cert	☐
Ra ≤ 0.4 µm finish	☐
Electropolished	☐
Passivation certified	☐
Weld or tri-clamp connections	☐
SS316 actuator (IP69K)	☐

Summary

Criterion	Food Grade	Pharma Grade
Standard	3-A / EHEDG	ASME BPE
Material	SS316L	SS316L (low carbon)
Finish	Ra ≤ 0.8 µm	Ra ≤ 0.4 µm
Seat	FDA EPDM / Silicone	USP VI Silicone / PTFE
Connection	Tri-clamp	Tri-clamp or weld
Certification	3.1 material	3.2 material + traceability
Cost multiplier (vs standard)	3-4x	5-7x

Choose sanitary butterfly valves for: Food, beverage, dairy, pharmaceutical, biotech, cosmetic, or any application requiring cleanability and material compliance.
