How Butterfly Valves Reduce Pipeline Installation Cost: Labor, Supports, and Total Savings

Butterfly valves are the most cost-effective valve choice for large-diameter piping. Their lightweight, short face-to-face length, and simple mounting directly reduce installation labor, material costs, and structural requirements.

This guide quantifies the savings across each installation cost component.

Installation Cost Components – Butterfly vs Gate Valve

Cost Component	Butterfly Valve	Gate Valve	Savings
Valve purchase price (DN200)	$280	$800	65%
Shipping cost (by weight)	Low (32 kg)	High (85 kg)	60-70%
Lifting equipment	None (manual)	Crane/forklift	$200-500 saved
Installation labor	1-2 hours	3-4 hours	50% less
Pipe supports (structural steel)	Standard	Reinforced	20-30% less steel
Flange bolts	8 long bolts	16 short bolts (2 sets)	50% fewer bolts
Gaskets	None required	2 gaskets	$20-50 saved
Actuator (if automated)	Smaller (35 Nm)	Larger (150 Nm)	50-60% less

Weight Savings – Direct Impact on Installation

Size	Butterfly Weight	Gate Valve Weight	Weight Saved	Crane Required?
DN80	5 kg	15 kg	10 kg	No for both
DN150	18 kg	55 kg	37 kg	Maybe for gate
DN200	32 kg	85 kg	53 kg	Yes for gate
DN300	65 kg	210 kg	145 kg	Yes for gate
DN400	115 kg	380 kg	265 kg	Yes for both, but smaller crane for butterfly

One-person installation: Butterfly valves up to DN200 can be installed by one person. Gate valves above DN150 typically require two people or mechanical lift.

Face-to-Face Length Savings – Pipe Spacing Impact

Size	Butterfly Length	Gate Valve Length	Space Saved	Impact
DN100	54 mm	280 mm	226 mm	Tighter pipe runs
DN200	62 mm	350 mm	288 mm	Shorter valve stations
DN300	78 mm	500 mm	422 mm	Reduced building length

Building impact: 10 valves at DN300 saves 4.2 meters of pipe rack length.

No Gasket Requirement – Savings

Valve Type	Gaskets Required	Cost per DN200	Time per Valve
Butterfly (wafer/lug)	0	$0	0 minutes
Gate valve	2	$10-30	5-10 minutes
Flanged ball valve	2	$15-40	5-10 minutes

Annual impact: 100 valves saves $1,000-4,000 in gaskets and 8-16 labor hours.

Bolt Savings

Valve Size	Butterfly Bolts	Gate Valve Bolts	Bolt Savings
DN100	8 long bolts	16 short bolts (2 sets)	8 bolts
DN200	8 long bolts	16 short bolts (2 sets)	8 bolts
DN300	12 long bolts	24 short bolts (2 sets)	12 bolts

Butterfly advantage: One set of long bolts vs two sets of short bolts with nuts.

Pipe Support Savings

Butterfly valves weigh 65-70% less than gate valves. This directly reduces structural steel requirements.

Pipe Size	Valve Type	Valve Weight	Support Spacing	Steel Weight Saved
DN150	Gate	55 kg	Standard	Baseline
DN150	Butterfly	18 kg	Same (load reduced)	67% less valve load
DN300	Gate	210 kg	Reinforced required	Baseline
DN300	Butterfly	65 kg	Standard acceptable	Reduced steel gauge

Structural impact: Lighter valves allow lighter pipe supports, especially on overhead racks.

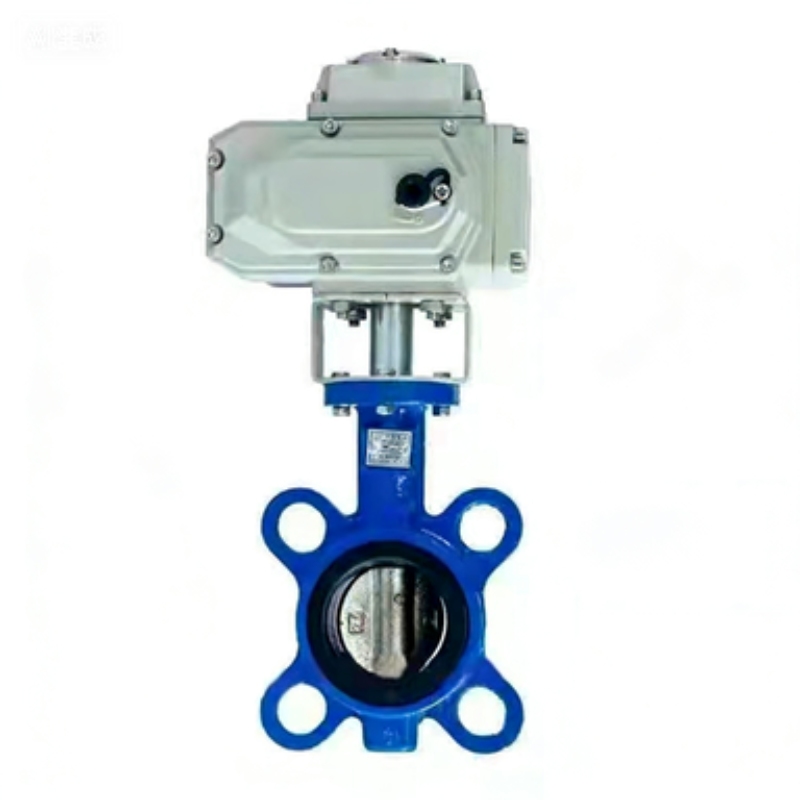

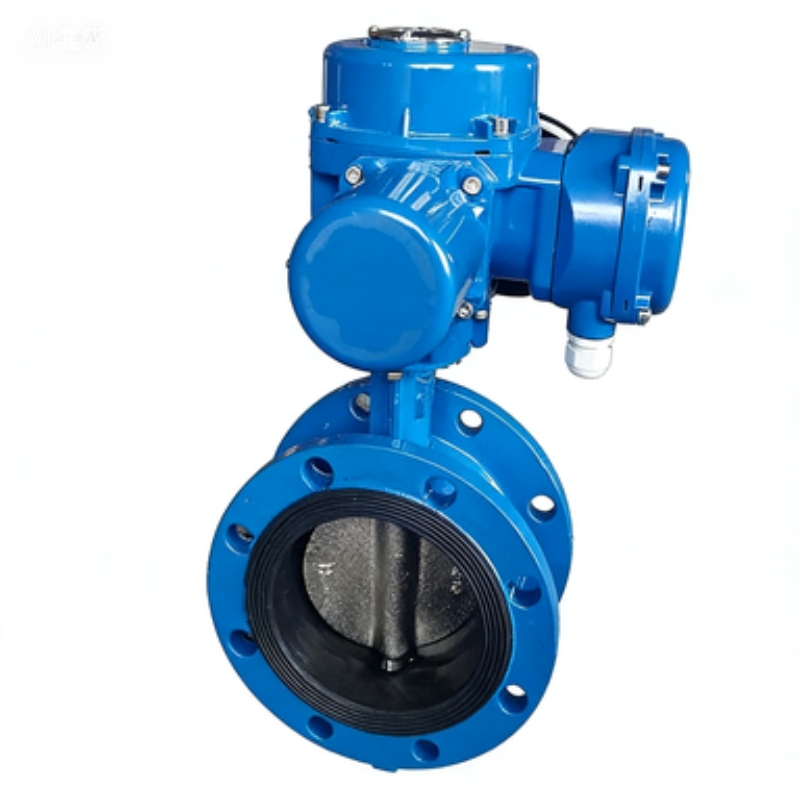

Automated Valve Installation Savings

Butterfly valves require smaller actuators due to lower torque.

Size	Butterfly Torque	Ball Valve Torque	Actuator Size Difference	Cost Savings
DN100	35 Nm	80 Nm	50% smaller	$50-100
DN150	60 Nm	150 Nm	60% smaller	$100-200
DN200	100 Nm	250 Nm	60% smaller	$150-300

Total Installed Cost Comparison (DN200)

Cost Component	Butterfly	Gate Valve	Ball Valve
Valve purchase	$280	$800	$1,200
Shipping	$30	$70	$90
Lifting equipment	$0	$300	$400
Installation labor (2 hrs vs 4 hrs)	$150	$300	$350
Pipe supports (steel)	$50	$80	$80
Gaskets	$0	$20	$30
Bolts	$15	$25	$25
Total installed cost	$525	$1,595	$2,175
Savings vs gate	—	$1,070	$1,650

Butterfly valve saves 65-75% on total installed cost vs gate or ball valves at DN200.

Total Installed Cost Comparison (DN300)

Cost Component	Butterfly	Gate Valve
Valve purchase	$550	$2,500
Shipping	$60	$200
Lifting equipment	$0 (manual)	$500 (crane)
Installation labor (2 hrs vs 5 hrs)	$150	$375
Pipe supports (steel)	$100	$200
Gaskets	$0	$30
Bolts	$25	$40
Total installed cost	$885	$3,845
Savings	—	$2,960

Space Utilization Savings – Rack Density

Butterfly valves allow tighter pipe spacing due to shorter face-to-face length.

Pipe Rack Width (10 pipes)	Gate Valve	Butterfly Valve	Space Saved
Required length for valve station	3.5 m	0.8 m	2.7 m (77% less)

Building impact: Smaller valve stations mean shorter buildings or more pipes in same space.

Maintenance Cost Savings (Ongoing)

Activity	Butterfly	Gate Valve	Savings
Valve removal for repair	Loosen bolts, lift by hand	Heavy, crane required	$200-500 per event
Seat replacement cost	$20-50 (seat only)	$200-500 (grind or replace)	80-90%
Time to replace seat	15-30 minutes	1-2 hours	75% less labor
Actuator replacement (automated)	Smaller, cheaper actuator	Larger, expensive actuator	40-60%

Multi-Valve Project Savings Example

Project: 200 butterfly valves (mix of DN100 to DN300) replacing gate valves.

Cost Area	Savings per Valve (avg)	Total Savings
Valve purchase	$400	$80,000
Shipping	$30	$6,000
Lifting equipment	$200	$40,000
Installation labor	$150	$30,000
Pipe supports	$50	$10,000
Gaskets and bolts	$20	$4,000
Total installation savings	$850	$170,000
Ongoing maintenance (10 years)	$100/year avg	$200,000

Total 10-year savings: $370,000 on a 200-valve project.

Cost Savings Summary Table

Valve Size	Installed Cost Savings (vs Gate)	Installed Cost Savings (vs Ball)
DN100	$400-600	$600-900
DN150	$600-1,000	$900-1,500
DN200	$1,000-1,500	$1,500-2,200
DN300	$2,500-3,500	Not comparable
DN400	$4,000-6,000	Not comparable

Where Savings Are Largest

Factor	Savings Multiplier	Explanation
Larger diameters (DN200+)	Highest	Weight and cost difference grows
Overhead piping	Very high	Crane costs avoided
Remote sites	High	Heavy equipment mobilization costly
Automated valves	High	Smaller actuator, less wiring
High valve count projects	Very high	Savings multiply linearly
Tight space installations	High	Short face-to-length fits

Summary – Why Butterfly Valves Cut Installation Cost

Reason	Impact
65-70% lighter	No cranes, one-person installation
80% shorter face-to-length	Tighter pipe runs, smaller buildings
No gaskets needed	$10-40 saved per valve
Fewer bolts	Faster assembly
Smaller actuators	$50-300 saved per automated valve
Lower torque	Smaller, cheaper electric or pneumatic
Lighter pipe supports	Less structural steel
Faster seat repair	75% less maintenance labor
