Top Features of High-Performance Industrial Butterfly Valves: What to Look For
Standard butterfly valves work for basic water and air service. High-performance butterfly valves handle higher pressures, temperatures, and corrosive media. They use advanced seat designs, stronger materials, and tighter shut-off.
This guide covers the key features that differentiate high-performance from standard valves.
Standard vs High-Performance – Quick Comparison
| Feature | Standard Butterfly | High-Performance Butterfly |
|---|
| Pressure rating | PN10-PN16 | PN25-PN40+ |
| Temperature range | -20°C to +120°C (soft seat) | -40°C to +650°C (metal seat) |
| Seat design | Bonded or replaceable | Double-offset / triple-offset |
| Shut-off leakage | Class IV-VI | Class VI (zero leakage) |
| Face-to-face | Wafer (short) | Lug or wafer (ISO 5752) |
| Stem sealing | O-rings | Live-loaded packing / PTFE |
| Fire-safe option | No | Yes (API 607) |
| Materials | Ductile iron, EPDM | SS316, Inconel, graphite |
| Typical applications | HVAC, water | Chemical, steam, oil/gas |
Feature 1: Offset Seat Design
| Offset Type | Description | Performance Level |
|---|
| Zero offset (concentric) | Stem centered in disc and seat | Standard valve |
| Double offset (high-performance) | Stem offset from seat center and pipe center | Low friction, longer life |
| Triple offset (severe service) | Double offset + conical seat angle | Metal seat, bi-directional zero leakage |
Offset Comparison
| Feature | Concentric | Double Offset | Triple Offset |
|---|
| Seat material | Soft (rubber, PTFE) | Soft or metal | Metal only |
| Friction during rotation | High | Low | Very low |
| Seat wear | Moderate | Low | Minimal |
| Bidirectional sealing | Yes | Yes | Yes |
| Fire-safe | Limited | Yes | Yes |
| Cost | Low | Medium-High | Very High |
| Typical pressure | PN16 | PN25-PN40 | PN40+ |
Feature 2: Seat Design and Materials
Seat Types
| Seat Type | Best For | Shut-off | Replacement |
|---|
| Bonded (molded-in) | Standard water service | Good | Not replaceable (new valve) |
| Replaceable (push-in) | General industrial | Good | Easy, low cost |
| Flanged / clamped | High-performance | Very good | Moderate |
| Metal (hard-faced) | High temp, abrasion | Class IV-VI | Difficult |
High-Performance Seat Materials
| Material | Max Temp | Pressure | Chemical Resistance | Best For |
|---|
| PTFE | 230°C | PN25 | Excellent | Corrosive chemicals |
| Reinforced PTFE (RTFE) | 260°C | PN25-PN40 | Excellent | High pressure chemicals |
| UHMWPE | 80°C | PN16 | Good | Abrasive slurries |
| PEEK | 250°C | PN40 | Excellent | Extreme chemical, high pressure |
| Graphite | 450°C | PN25-PN40 | Fair (oxidation) | High temp steam |
| Metal (stellite) | 650°C+ | PN40 | Excellent | Severe high temp |
Feature 3: Stem Sealing
| Stem Seal Type | Pressure Rating | Leakage | Maintenance |
|---|
| Single O-ring | PN16 | Acceptable | Replace when leaking |
| Double O-ring | PN25 | Low | Moderate |
| PTFE V-ring packing | PN25-PN40 | Very low | Periodic adjustment |
| Live-loaded packing | PN40 | Near zero | Self-adjusting |
| Metal bellows seal | Vacuum to PN40 | Zero (to atmosphere) | None (sealed system) |
High-performance standard: Live-loaded PTFE packing or double O-rings with backup.
Feature 4: Fire-Safe Design
Fire-safe valves maintain shut-off after a fire (API 607 or ISO 10497).
| Fire-Safe Feature | Purpose |
|---|
| Metal secondary seat | Seals after soft seat burns |
| Anti-static device | Prevents static spark ignition |
| Blow-out proof stem | Stem cannot eject under pressure |
| Graphite packing | Survives fire temperature |
| Fire-safe certification | API 607 / ISO 10497 tested |
Fire-Safe Rating Levels
| Standard | Test Duration | Leakage Allowed |
|---|
| API 607 (soft seat) | 30 minutes | 40 ml/min/inch of diameter |
| ISO 10497 | 30 minutes | 200 ml/min max (gaseous) |
| BS 6755 Part 2 | 30 minutes | Similar to API 607 |
Applications requiring fire-safe: Oil refineries, gas terminals, petrochemical, marine fuel systems.
Feature 5: Material Grades
Body Materials
| Material | Max Pressure | Max Temp | Best For |
|---|
| Ductile Iron (GGG40) | PN25 | 350°C | General industrial, steam |
| Cast Steel (WCB) | PN40 | 425°C | High pressure steam, oil |
| Stainless Steel (CF8/CF8M) | PN40 | 650°C | Corrosive, high temp |
| Duplex / Super Duplex | PN40 | 350°C | Seawater, sour gas |
| Hastelloy / Inconel | PN40 | 800°C+ | Extreme chemical, high temp |
Disc Materials
| Material | Hardness | Corrosion Resistance | Best For |
|---|
| Epoxy-coated DI | Soft | Good (coating dependent) | Water, low corrosion |
| SS304 | Moderate | Moderate | Mild chemicals |
| SS316 (CF8M) | Moderate | Good | Most chemicals, seawater |
| Duplex | High | Very good | Seawater, chlorides |
| Stellite-coated | Very high | Excellent | Abrasive, high temp |
| Monel | High | Excellent | Hydrofluoric acid, seawater |
Feature 6: Pressure Ratings
| Rating | Bar | PSI | Typical Application |
|---|
| PN10 | 10 | 145 | Low pressure water |
| PN16 | 16 | 232 | Standard HVAC, water |
| PN25 | 25 | 363 | High performance industrial |
| PN40 | 40 | 580 | Severe service, high pressure |
| Class 150 (ASME) | 20 | 290 | North American standard |
| Class 300 (ASME) | 50 | 725 | High pressure industrial |
High-performance threshold: PN25+ or Class 150+ with metal or RTFE seat.

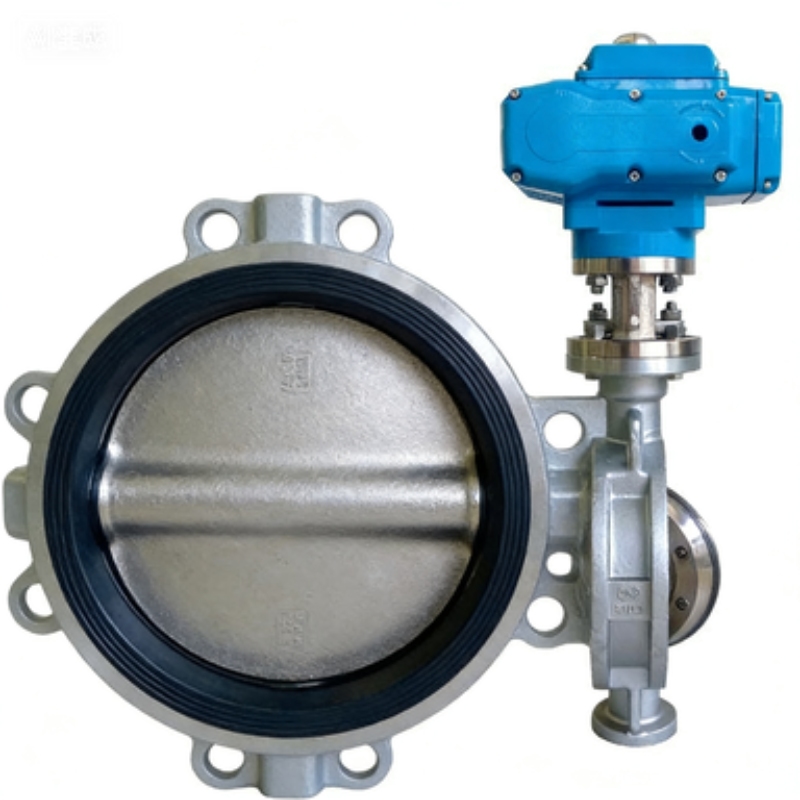

Feature 7: End Connections
| Connection | Standard | Best For |
|---|
| Wafer (short) | ISO 5752 | Tight spaces, low cost |
| Lug (long) | ISO 5752 | Dead-end, line removal |
| Flanged | ASME B16.5 / EN1092 | High pressure, large diameters |
| Double flanged | ASME / EN | Very high pressure |
High-performance preferred: Lug or flanged for pressure rating and dead-end capability.

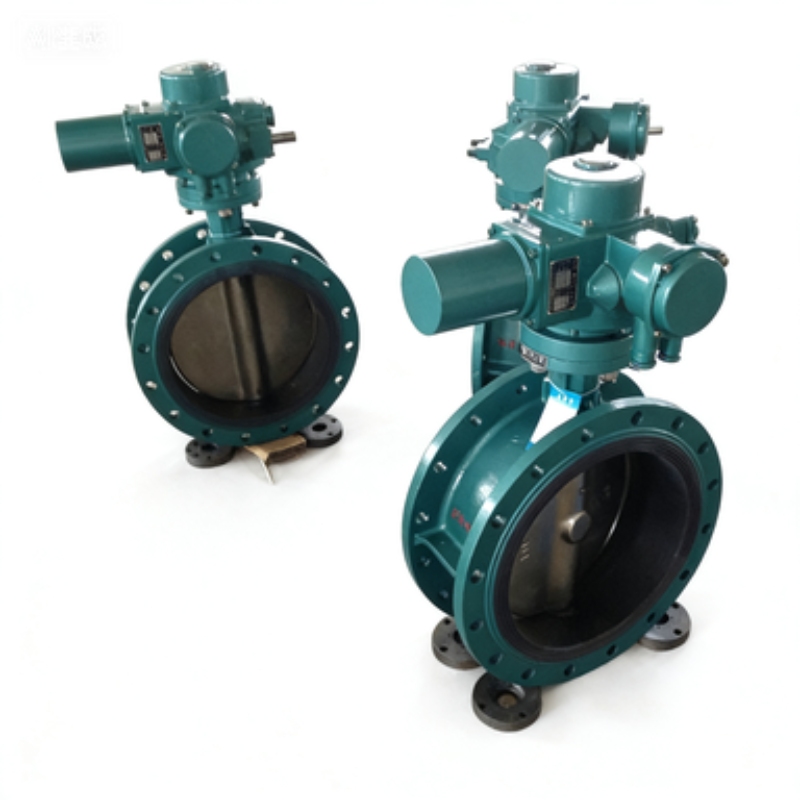

Feature 8: Actuation Compatibility
| Feature | Standard | High-Performance |
|---|
| Mounting pad | ISO 5211 (F05-F16) | Same standard |
| Actuator torque | Lower (soft seat) | Higher (metal seat) |
| Positioner | Optional | Often required for process |
| Feedback | Limit switches | Smart positioner + 4-20 mA |
| Fail-safe | Not typical | Pneumatic spring return |
Feature 9: Certification and Testing
| Certification | Standard | Required For |
|---|
| Pressure testing | API 598 / EN 12266 | All valves |
| Fire-safe | API 607 / ISO 10497 | Oil, gas, marine |
| Fugitive emissions | ISO 15848 | Chemical, refining |
| NACE | MR0175 / MR0103 | Sour gas (H2S) |
| SIL rating | IEC 61508 | Safety instrumented systems |
| ATEX / IECEx | Ex db / Ex tb | Hazardous areas |
Feature 10: Shut-off Leakage Ratings
| Class | Max Leakage | Typical Seat | Application |
|---|
| Class III | 0.1% of Cv | Metal seat | Basic throttling |
| Class IV | 0.01% of Cv | PTFE / Reinforced | General industrial |
| Class V | 5 ml/min/inch | RTFE / PEEK | High pressure liquid |
| Class VI | Bubble-tight (air) | Soft seat (EPDM/Viton) | Gas, critical shut-off |
| Class VI (metal) | Near zero (lapped) | Triple offset | Severe service |
High-performance target: Class IV minimum, Class VI for critical shut-off.
Selection Matrix by Application
| Application | Required Features |
|---|
| Chemical processing | PTFE seat, SS316 body, Class IV-V, live-loaded packing |
| Steam service | Metal/graphite seat, cast steel, PN25+, ISO 15848 |
| Oil / gas | Fire-safe (API 607), NACE, double offset, Class VI |
| Seawater | Duplex body, double O-ring stem, PTFE seat (or metal) |
| High temperature (400°C+) | Triple offset, metal seat, Inconel disc, graphite packing |
| Cryogenic (-100°C) | Extended stem, SS316, PTFE or metal seat |
| Abrasive slurry | Hard metal seat, stellite disc, full lug body |
| Pharmaceutical | SS316L, electropolished, USP VI seat, ISO 5211 |
