What Defines a High-Pressure Application?

In industrial fluid control, "high pressure" can mean different things depending on the industry and application. Generally, high-pressure applications fall into these categories:

High-pressure applications place unique demands on actuators, including:

• Higher torque or thrust requirements to overcome differential pressure forces

• Robust sealing to prevent leakage

• Structural integrity to withstand pressure-induced stresses

• Fail-safe functionality for emergency shutdown scenarios

Key Challenges in High-Pressure Actuation

1. Increased Torque/Thrust Requirements

The pressure differential across a valve creates forces that the actuator must overcome. As pressure increases, so does the required torque (for rotary valves) or thrust (for linear valves).

Formula (Rotary):
Torque required = Valve torque at ΔP + Safety margin

Formula (Linear):
Thrust required = (Pressure differential × Seat area) + Stem friction + Safety margin

2. Stem Seal Integrity

High-pressure applications demand robust stem sealing to prevent fugitive emissions and process leakage. This is particularly critical for:

• Toxic or hazardous media

• High-value fluids

• Environmental compliance (e.g., EPA, ISO 15848)

3. Structural Demands

Actuator components — including housings, gears, and drive trains — must withstand the mechanical stresses associated with high-pressure operation without deformation or fatigue failure.

4. Safety Requirements

High-pressure failures can result in catastrophic consequences. Actuators in these applications often require:

• Fail-safe functionality (spring-return or battery backup)

• Explosion-proof enclosures (ATEX, IECEx)

• SIL (Safety Integrity Level) certification for safety instrumented systems

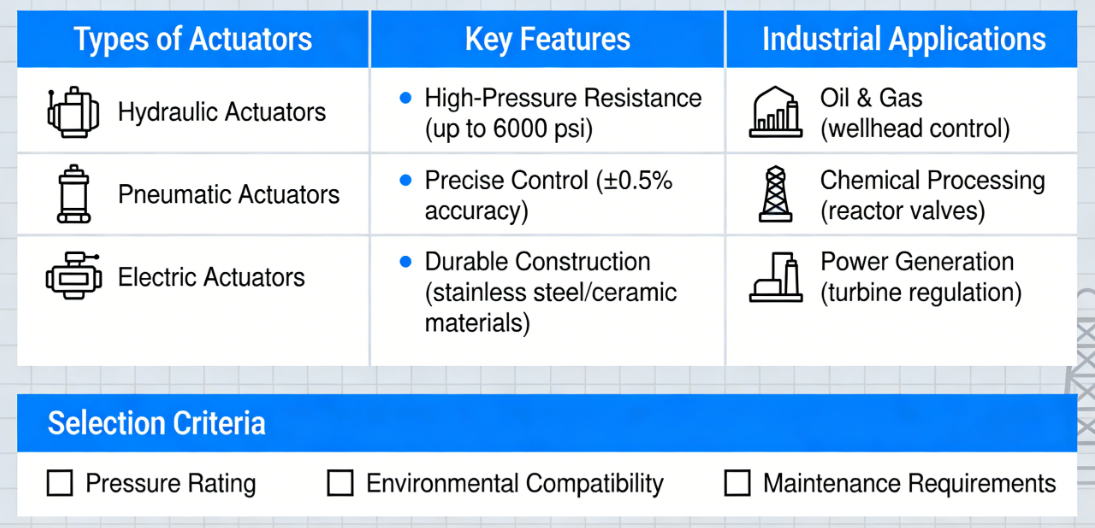

Best Actuator Types for High-Pressure Applications

1. Pneumatic Scotch Yoke Actuators

Best for: Quarter-turn valves (ball, butterfly, plug) in high-pressure gas, oil, and chemical applications.

Why it excels: The scotch yoke mechanism delivers increasing torque at the stroke ends — exactly where ball and butterfly valves need it most for tight shutoff against high pressure.

2. Hydraulic Actuators

Best for: Very high pressure applications, subsea, wellhead control, and heavy industrial processes.

Why it excels: Hydraulic actuators are unmatched for ultra-high pressure applications where forces exceed the practical limits of pneumatic or electric alternatives.

3. Electric Actuators with High-Torque Gearboxes

Best for: Applications requiring precise positioning, where compressed air or hydraulic power is not available.

Why it excels: Modern electric actuators with robust gear trains and high-efficiency motors can handle significant torque requirements while offering advanced control and diagnostic features.

4. Stainless Steel Pneumatic Rack and Pinion Actuators

Best for: High-pressure applications in corrosive environments (marine, chemical, pharmaceutical).

Why it excels: In high-pressure applications where corrosion is also a concern, stainless steel actuators provide the necessary durability without compromising on torque output.

Valve Compatibility for High-Pressure Service

Selection Criteria for High-Pressure Actuators

1. Torque/Thrust Calculation

Accurate torque or thrust calculation is the foundation of proper actuator selection. Consider:

• Break torque — torque required to initiate movement from closed position

• Running torque — torque required to maintain movement

• Seating torque — torque required to achieve tight shutoff

• Safety margin — typically 20–30% for high-pressure applications

2. Pressure Class and Temperature

Match actuator capabilities to valve pressure class:

3. Fail-Safe Requirements

High-pressure applications often require fail-safe functionality for safety and regulatory compliance:

4. Environmental Protection

High-pressure applications often occur in demanding environments:

5. Control and Communication

Modern high-pressure systems increasingly require integration with control systems:

• On/off — Simple open/close for isolation

• Modulating — Precise positioning for flow control

• SIL certification — For safety instrumented systems

• Communication protocols — Modbus, Profibus, Foundation Fieldbus

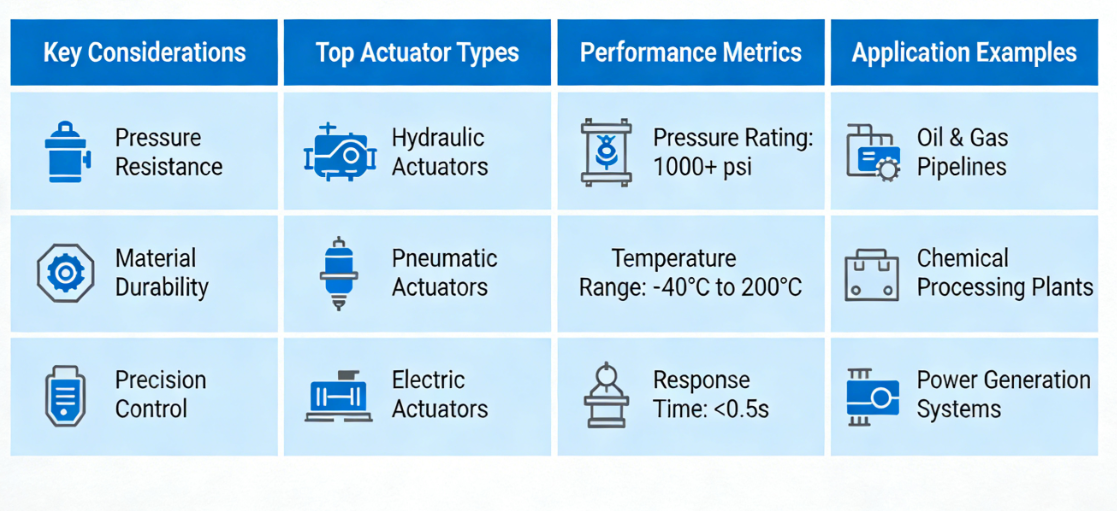

Actuator Comparison for High-Pressure Applications

Application Examples by Industry

Oil & Gas

Chemical Processing

Power Generation

Hydraulic Systems

Summary: High-Pressure Actuator Selection Checklist

Final Thoughts

High-pressure industrial applications demand actuators that combine robust construction, reliable performance, and appropriate safety features. Whether you need scotch yoke pneumatic actuators for large ball valves, hydraulic actuators for subsea service, or high-torque electric actuators for precise modulating control, selecting the right solution requires careful consideration of torque requirements, environmental conditions, and safety standards.

For assistance with actuator sizing, selection, or project specifications, feel free to reach out.
