The Challenge of Space-Constrained Installations
Space limitations in pipeline installations arise from various factors:
| Scenario | Challenge |
|---|---|
| Equipment skids | Dense arrangement of pumps, valves, and instrumentation |
| Retrofit projects | Existing piping with minimal clearance for automation |
| Modular systems | Prefabricated assemblies with fixed dimensions |
| Enclosed spaces | Valve vaults, pits, or cabinets with restricted access |
| Instrument air headers | Multiple valves in close proximity |
In these environments, traditional actuators may simply not fit — or may require costly piping modifications to accommodate their footprint.
What Makes an Actuator "Compact"?
Compact actuators are designed to minimize one or more of the following dimensions:
| Dimension | Consideration |
|---|---|
| Height | Critical for installations with overhead clearance constraints |
| Width/Depth | Important for tight lateral spacing between multiple valves |
| Overall envelope | Total volume occupied by the actuator assembly |
Key Design Features of Compact Actuators
| Feature | Benefit |
|---|---|
| Direct mount (ISO 5211) | Eliminates separate mounting bracket, reducing height |
| Integrated accessories | Positioners, limit switches, and solenoid valves built into actuator body |
| Rack and pinion design | Naturally compact compared to scotch yoke for equivalent torque |
| Single-acting spring-return | Combines actuation and fail-safe in one compact package |
| Multi-function integration | Combines actuation, control, and feedback in a single unit |
Compact Actuator Types for Small-Space Applications

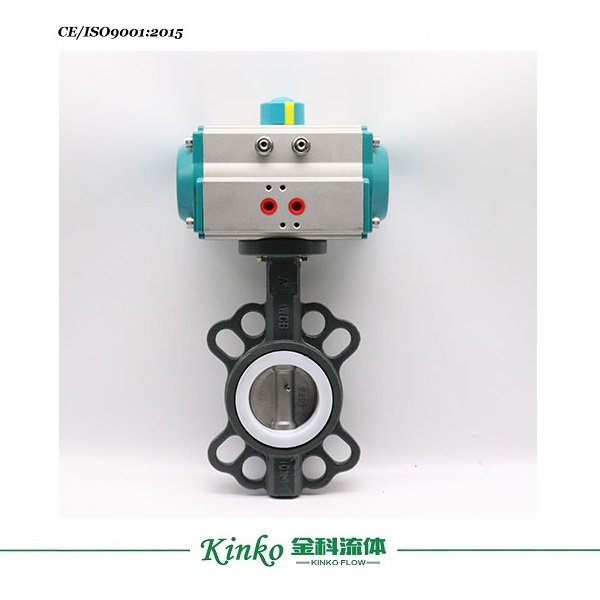

1. Compact Rack and Pinion Pneumatic Actuators
Best for: Quarter-turn valves (ball, butterfly, plug) in space-constrained industrial applications.
| Feature | Benefit |
|---|---|
| Narrow profile | Minimal width for side-by-side mounting |
| Low height | Direct ISO 5211 mounting reduces stack height |
| Multiple bore sizes | Wide torque range in compact packages |
| Spring-return options | Fail-safe functionality without added footprint |
Typical Applications:
Instrument air headers
Chemical injection skids
Modular process systems
Valve manifolds
2. Miniature Electric Actuators
Best for: Small valves, clean environments, and applications where pneumatic infrastructure is unavailable.
| Feature | Benefit |
|---|---|
| Ultra-compact footprint | Fits in spaces too small for pneumatic actuators |
| Low power consumption | Suitable for battery or solar-powered installations |
| Simple wiring | Reduced installation complexity |
| Position feedback | Integrated feedback in compact housing |
Typical Applications:
Analytical instrumentation
Sampling systems
HVAC terminal units
Laboratory and pharmaceutical equipment
3. Angle Seat Valve with Integrated Actuator
Best for: Compact assemblies where valve and actuator are designed as a single unit.
| Feature | Benefit |
|---|---|
| Integrated design | No separate mounting interface; minimal overall height |
| Streamlined profile | Narrow footprint for dense installations |
| Piston-operated | Reliable performance in compact form |
| Multiple connection options | Threaded, clamp, or welded ends |
Typical Applications:
Sterile processing
Steam applications
Chemical dosing
Water treatment skids
4. Stainless Steel Compact Actuators
Best for: Small-space installations in corrosive or hygienic environments.
| Feature | Benefit |
|---|---|
| Corrosion resistance | 304/316 stainless steel construction |
| Smooth surfaces | Easy to clean; suitable for sanitary applications |
| Compact dimensions | Same footprint as standard compact actuators |
| Washdown compatible | IP67/IP68 protection for wet environments |
Typical Applications:
Food and beverage processing
Pharmaceutical manufacturing
Marine and offshore
Chemical processing
Space-Saving Mounting Configurations
Direct Mount (ISO 5211)
The industry standard for compact installations. ISO 5211 defines standardized mounting interfaces (F03, F05, F07, etc.) that allow actuators to mount directly to valves without separate brackets.
| Interface | Bolt Circle (mm) | Drive Type | Typical Valve Size |
|---|---|---|---|
| F03 | 36 | 9 mm square | DN15–DN25 |
| F05 | 50 | 11 mm square | DN25–DN40 |
| F07 | 70 | 14 mm square | DN40–DN65 |
| F10 | 90 | 17 mm square | DN65–DN100 |
Benefit: Direct mounting reduces overall height by eliminating bracket thickness and simplifies alignment.
Close-Coupled Assemblies
For extreme space constraints, close-coupled assemblies integrate valve and actuator with minimal clearance between components.
| Configuration | Space Savings |
|---|---|
| Short neck | Reduced stem extension length |
| Flange-less valves | Eliminates mounting flange height |
| Integrated positioner | Mounted directly on actuator without external brackets |
Accessory Integration for Compact Installations
Traditional actuator installations often require multiple externally mounted accessories — increasing footprint and installation complexity. Compact solutions integrate these features.
| Accessory | Traditional Approach | Compact Approach |
|---|---|---|
| Limit switches | External box mounted on bracket | Integrated into actuator housing |
| Positioner | Mounted separately with tubing | Direct-mount or integrated |
| Solenoid valve | Mounted on bracket with tubing | Direct-mount on actuator ports |
| Manual override | External handwheel | Integrated or low-profile |
Benefits of Integrated Accessories
Reduces overall footprint — no external brackets or enclosures
Simplifies installation — fewer fittings, shorter tubing runs
Improves reliability — fewer leak points, protected components
Lowers cost — reduced installation labor and components
Compact Actuator Comparison
| Parameter | Compact Rack & Pinion | Miniature Electric | Integrated Angle Seat | Compact Stainless Steel |
|---|---|---|---|---|
| Torque range | 5–1,000+ Nm | 1–50 Nm | N/A (integrated) | 5–500 Nm |
| Footprint | Very compact | Ultra-compact | Minimal overall height | Compact with corrosion resistance |
| Power source | Compressed air | Electricity | Compressed air | Compressed air or electric |
| Control type | On/off, modulating | On/off, modulating | On/off | On/off, modulating |
| Fail-safe | Spring-return available | Battery backup | Spring-return available | Spring-return available |
| Best application | General industrial | Small valves, instrumentation | Sterile, steam, dosing | Corrosive, sanitary |
Application Examples by Industry
Oil & Gas
| Application | Solution |
|---|---|
| Instrument air headers | Compact rack and pinion on 1/2" to 2" ball valves |
| Chemical injection skids | Stainless steel compact actuators on small bore valves |
| Wellhead panels | Miniature electric actuators for pilot valves |
Chemical Processing
| Application | Solution |
|---|---|
| Reactor sampling systems | Angle seat valves with integrated compact actuators |
| Dosing skids | Compact rack and pinion on PVC/CPVC ball valves |
| Analyzer systems | Miniature electric actuators for switching |
Food & Beverage
| Application | Solution |
|---|---|
| CIP supply manifolds | Stainless steel compact actuators on sanitary ball valves |
| Filling lines | Integrated angle seat valves with compact profile |
| Ingredient dosing | Compact pneumatic actuators in washdown areas |
Pharmaceutical
| Application | Solution |
|---|---|
| Sterile processing | Compact stainless steel actuators with smooth surfaces |
| Cleanroom utilities | Miniature electric actuators (no compressed air) |
| WFI (Water for Injection) systems | Compact actuators on sanitary diaphragm valves |
Water & Wastewater
| Application | Solution |
|---|---|
| Chemical dosing skids | Compact rack and pinion on PVC ball valves |
| Analyzer sample lines | Miniature electric or pneumatic actuators |
| Panel-mounted systems | Low-profile actuators for control panels |
Selection Criteria for Compact Actuators
1. Available Space
Measure the installation envelope carefully:
| Dimension | What to Measure |
|---|---|
| Height | From valve centerline to overhead obstruction |
| Width | Clearance between adjacent valves or equipment |
| Depth | Clearance from pipe centerline to wall or adjacent equipment |
| Access | Space for installation, maintenance, and manual override |
2. Torque Requirements
Compact actuators must deliver sufficient torque despite their smaller size:
Verify break torque requirements for the valve
Account for pressure differential effects
Include safety margin (typically 20–30%)
Consider temperature effects on torque
3. Fail-Safe Requirements
For compact installations, fail-safe options may be limited by space:
| Fail-Safe Type | Space Impact |
|---|---|
| Spring-return (pneumatic) | Adds length to actuator; still compact |
| Battery backup (electric) | Requires external battery; may increase footprint |
| No fail-safe | Smallest footprint option |
4. Environmental Conditions
| Condition | Compact Solution |
|---|---|
| Corrosive | Stainless steel construction |
| Washdown | IP67/IP68 rated, smooth surfaces |
| Hazardous | Compact ATEX/IECEx certified actuators |
| Outdoor | Weatherproof enclosure, UV-resistant materials |
Installation Tips for Compact Actuators
| Tip | Benefit |
|---|---|
| Use ISO 5211 direct mount | Eliminates bracket height; simplifies alignment |
| Select integrated accessories | Reduces external components and tubing |
| Plan for maintenance access | Ensure manual override remains accessible |
| Consider orientation | Rotate actuator for best fit without interfering with accessories |
| Verify electrical clearance | Allow space for cable entry and bending radius |
Summary: Compact Actuator Selection Checklist
| Factor | Consideration | Verified |
|---|---|---|
| Available space | Height, width, depth measured | ☐ |
| Torque requirement | Valve torque + pressure effects + margin | ☐ |
| Valve interface | ISO 5211 mounting size | ☐ |
| Power source | Pneumatic or electric availability | ☐ |
| Fail-safe | Spring-return or battery backup required | ☐ |
| Environmental protection | IP rating, corrosion resistance | ☐ |
| Accessories | Integrated vs. external | ☐ |
| Maintenance access | Manual override reachable | ☐ |
Final Thoughts
Space-constrained pipeline installations no longer mean compromising on automation. Compact actuators deliver the performance, reliability, and safety features of standard actuators — in a footprint designed for tight spaces.
For assistance with compact actuator selection or project specifications, feel free to reach out.
